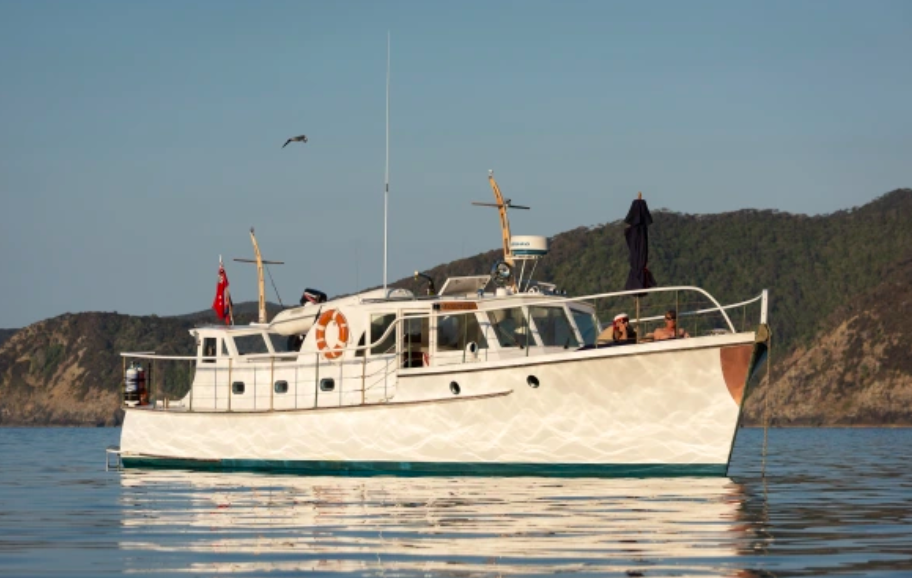

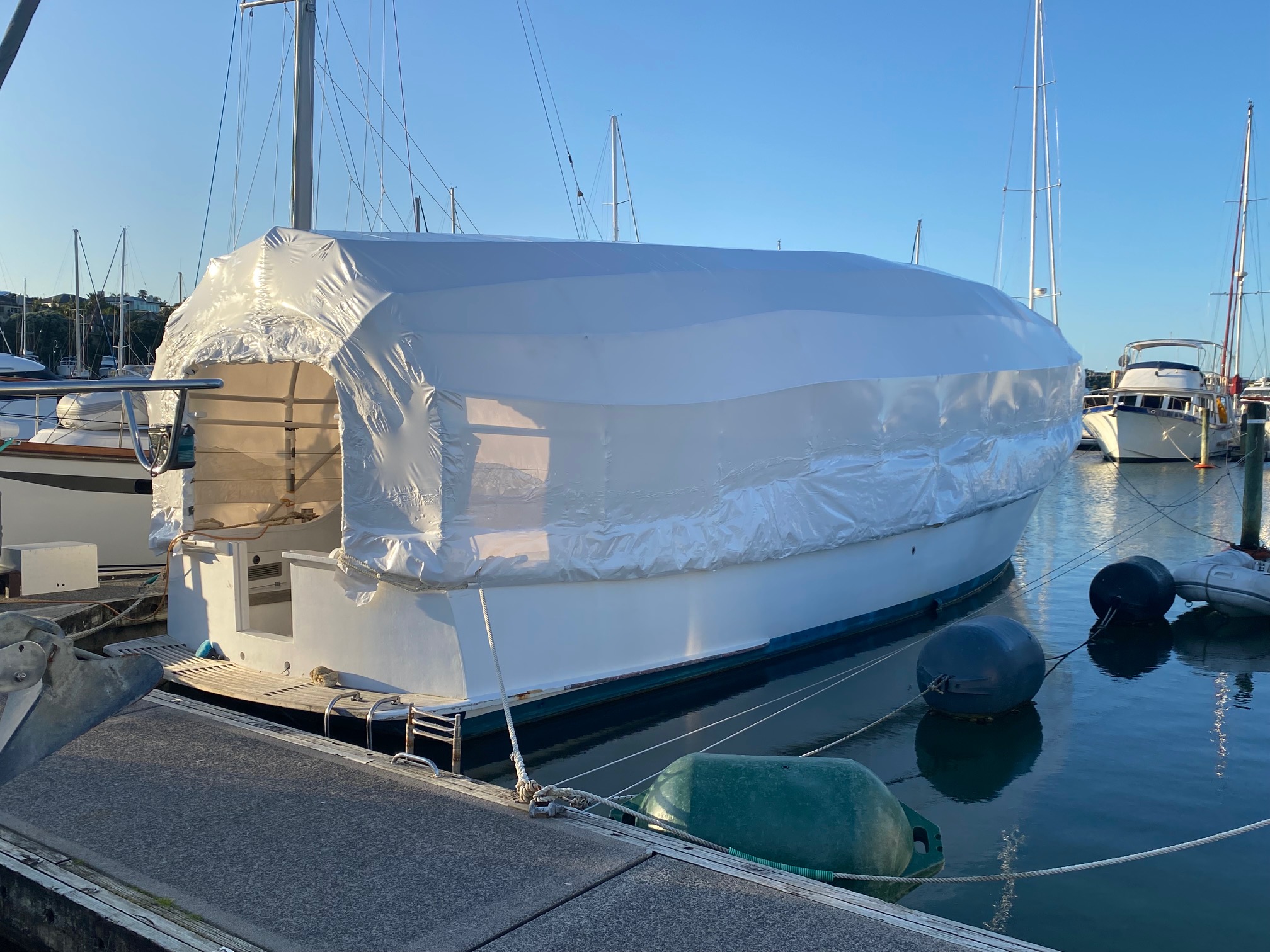

The above photo, ex Bob Brown’s fb would have made a great mystery launch story, but seeing we have probably one of the best written and most accurate stories on the boat, I thought I’d just link to it below – its a terrific read + lots of photos.

A quick overview – Manapouri, designed and built by Frank Ewen for Hector Alexander Parks, at 43’ she is a scaled down version of a 53ft “Thorneycroft Gentleman’s Cruiser.” With the upper structure changed by Frank Ewen to avoid copyright issues, and it did make a better-looking craft. She was built in Hector’s converted brooding shed on his poultry farm at 66 Anzac Rd, Whangarei, Northland.

photo ex Dean Wright

WW past story link: https://waitematawoodys.com/2019/01/30/manapouri-the-early-days/

MILFORD CREEK QUIZ WINNER – The winner of the WW bucket hat is Nathan Herbert, and very appropriate as only Nathan ID’ed two launches (1) Lady Mavis (4) Koala/Amaryllis. Which gave him two chances in the draw.

READ THE BACK STORY HERE https://waitematawoodys.com/2021/08/04/why-you-should-hold-off-paying-your-classic-yacht-association-subscription/

Woodys Cruising The Bay of Islands – Summer 2019/20 – Part One



20200102-_DHW8671

Linda – 1927 – Colin Wild

20200102-_DHW8681

Nautilus – Oliver & Gilpin

20191226-_DHW8609-Edit

Darleen – 1920 – Possibly Bailey & Lowe

20191226-_DHW8602-Edit

Echo – 1935 – Les Coulthard



20200102-_DHW8693

Thetis – 1955 – Lane Motor Boat Company

20200102-_DHW8732

Lady Crossley – 1947 – Colin Wild

20200102-_DHW8719

Lady Ngaio – 1928 – Collings & Bell

20200102-_DHW8752

Manapouri – 1960 – Parkes

WOODYS CRUISING THE BAY OF ISLANDS – SUMMER 2019/20 – Part 1

Just got home yesterday from 10 days mooching around Waiheke and while clearing the in-box I spotted an email from Dean Wright, now Dean is a Bay of Islands based professional photographer with a passion for wooden boats. He even owns one  – the 1917, Arethusa.

Now any email from Dean normally contains some stunning photos and yesterdays one was a cracker – too good to run all as one, so I will split them in two.
Today we have featured pleasure launches – the first being one of the smartest classic wooden launches in our fleet – Linda. She has appeared on WW many times so if you want o know more just enter Linda in the WW search box.
I love the photo above because its the personification of our classic wooden boating movement.
Below I have included a photo of the 2018/19 built ‘spirit of tradition’ launch – Grace, and with her beautiful lines, she could only ever be a Salthouse 🙂
I have captioned the Woodys that I have been able to ID. To read more on the boats featured, use the WW search box 😉

GRACE DHW8726

Grace – 2019 – Salthouse

WBB0003_Banner-980x160



CYA Double Banger – Riverhead Launch Cruise + Vintage & Veterans Yacht Race

IMG_1049

Achilles

_1050989

My Girl



P1060013

My Girl + Raindance

_1050993

Monterey, Te Arahi, Altair, Manapouri

CYA Double Banger – Riverhead Launch Cruise + Vintage & Veterans Yacht Race

While mooching around under the Harbour Bridge waiting for the launch stragglers , I snapped a few photos of the yacht fleet tuning up for the start of the annual Vintage & Veterans yacht race – Photos below
The weather for the launch cruise was almost ideal, after we had arrived at the Riverhead Tavern and had planted ourselves in the bar, the rain started, so while we by dinning and chatting – the old girls got a fresh water wash down – perfect.
A good turn out for late in the season – 16 woodys – made up of 12 CYA members and 4 woodys that joined us for the day. I convinced one to join, but Jason Prew tells me I need to improve on my 25% conversion rate 🙂
Nice to catch up with those that made the trip by motorcar.
As always the food was excellent, just a wee hick-up with a power oops slowed the service down a tad but all good.
Sorry if I missed your woody with my camera – the fleet were very spaced out, so arrive times didn’t suit the need to sustenance 😉
As always, click photos to enlarge.

P1260685

Rawhiti A2 + Rainbow A7 + Waitangi A6

_1050953

Arcturus K8638

_1050961

Little Jim A16

Photos below of Thelma sent in by Simon Smith

Manapouri – The Early Days



20180704201415_00010a

20180704201415_00009a



MANAPOURI – The Early Days

I have been contacted by Manapouri’s owner Mark Sorrenson who has uncovered wonderful documentation on the design & built of her, along with some great photos from this period. This essay on the 1960, 43’ classic launch has been brought together by Noel Fyfe (Parks) to whom we are indebted.
I’ll let Mark & Noel tell the story below 🙂
A QUICK HEADS UP – YESTERDAYS STORY ON THE MAHURANGI REGATTA, GENERATED A LOT OF INPUT / CONTENT FROM THE WOODYS – SO IF YOU ONLY VIEWED THE STORY OUT IN THE MORNING, SCROLL DOWN & CHECK OUT ALL THE NEW PHOTOS & VIDEOS
“Manapouri, is a 43ft Motor Launch built for Hector Alexander Parks.
She is a scaled down version of a 53ft “Thorneycroft Gentleman’s Cruiser.” A launch that featured in the Sea Spray magazine. The upper structure was changed by Frank Ewen to cover their backsides, and it did make a better-looking craft.
Noel’s Uncle, Frank Ewen designed and built Manapouri, drew the plans and built a scale model before construction started in Hectors converted brooding shed on his Poultry farm at 66 Anzac Rd, Whangarei. (This now called Hilltop Road. The original house is still there, it has since been sheathed with narrow corrugated iron). Frank Ewen was one of the Ewen brothers. Frank, (he married Hazel who was Noel Fyfe’s mother’s sister) Ernie and John Ewen, also built the 24ft Gaff Cutter ‘Dolphin’, now owned by The Tino Rawa Trust and the 6 mtr C-class ‘Scout’whose story is recounted in the book by Sandra Gorters, “100 Years Astern”.
The Kauri for Manapouri was selected from two trees and milled by Lanes Saw Mills in Totara North. The Kauri was seasoned for twelve months before construction commenced. The Pohutakawa for the bow, stern and other smaller knees were sawn from over hanging trees at Manganese Point, Parua Bay in daring dawn raids. These raids were carried out in a dinghy built by Frank and powered by a 6hp Johnson, she never let a drop of water penetrate through her planks. A great stable dinghy. This dinghy slipped away from Manapouri in a storm and 3 weeks later Frank got a call from the Coromandel Police to say she had been found upside down. Her anchor had caught in the kelp, which had saved her from the rocks. All the boats Frank built had his name and address carved under a seat. The Pohutakawa and Puriri knees were stored for two years under sacks that were kept damp to stop them from splitting. Frank adzed and laid the keel, finishing it with a draw knife until it had the perfect finish. Hector’s stepson (Noel, who is now a sprightly 88, and without whom I could not have put together this early history), recalls that Frank was a perfectionist. All the planks were fitted with feeler gauges and no putty used other than to cover the silicon bronze nails used to fix the planks at the bow and stern or screws as were required. The planks were cut out of wider boards, with the curve required so that after steaming they were only bent on their flat edge.
Noel was at the time working as a builder during the week, building his first home at the weekend and helping Hector with the rooving of the planks in his spare time. Frank would mark out where he wanted the copper nails driven into the planks, in a fashion that did not split or damage any of the grain. This was a slow and tedious process that was left to Hector and Noel. Frank would later inspect this process to ensure the nails were rooved perfectly smooth inside the hull. The construction took approximately 3 years, with input from Alex Baxter.
Alex made the hatches and sliding doors and the skylights. These were fitted by John Roberts, who worked for Ken Lowe and Alen Orams. John Roberts worked for Ken Lowe for three years, then for Alen Orams for fifteen years, boat building.

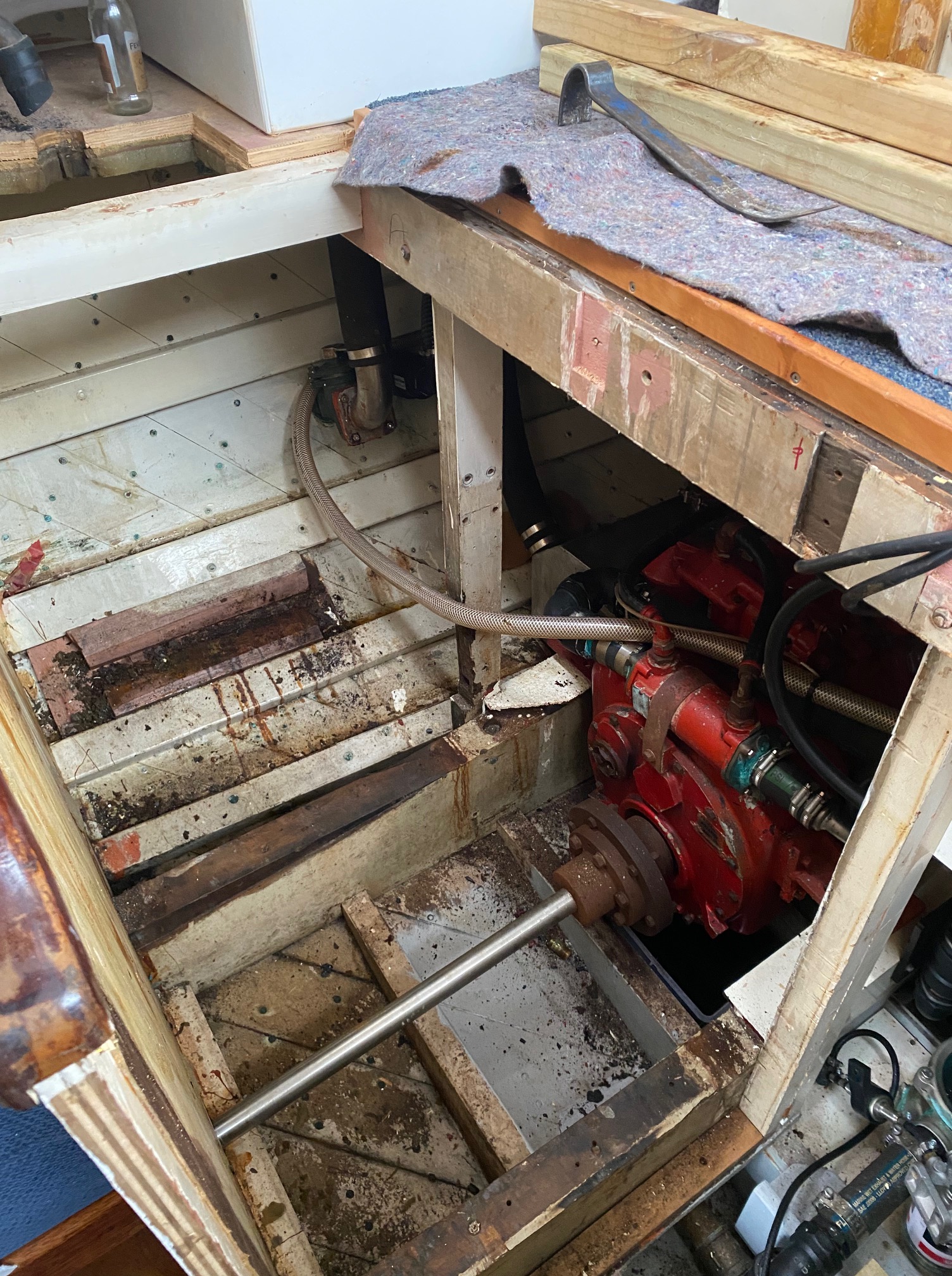

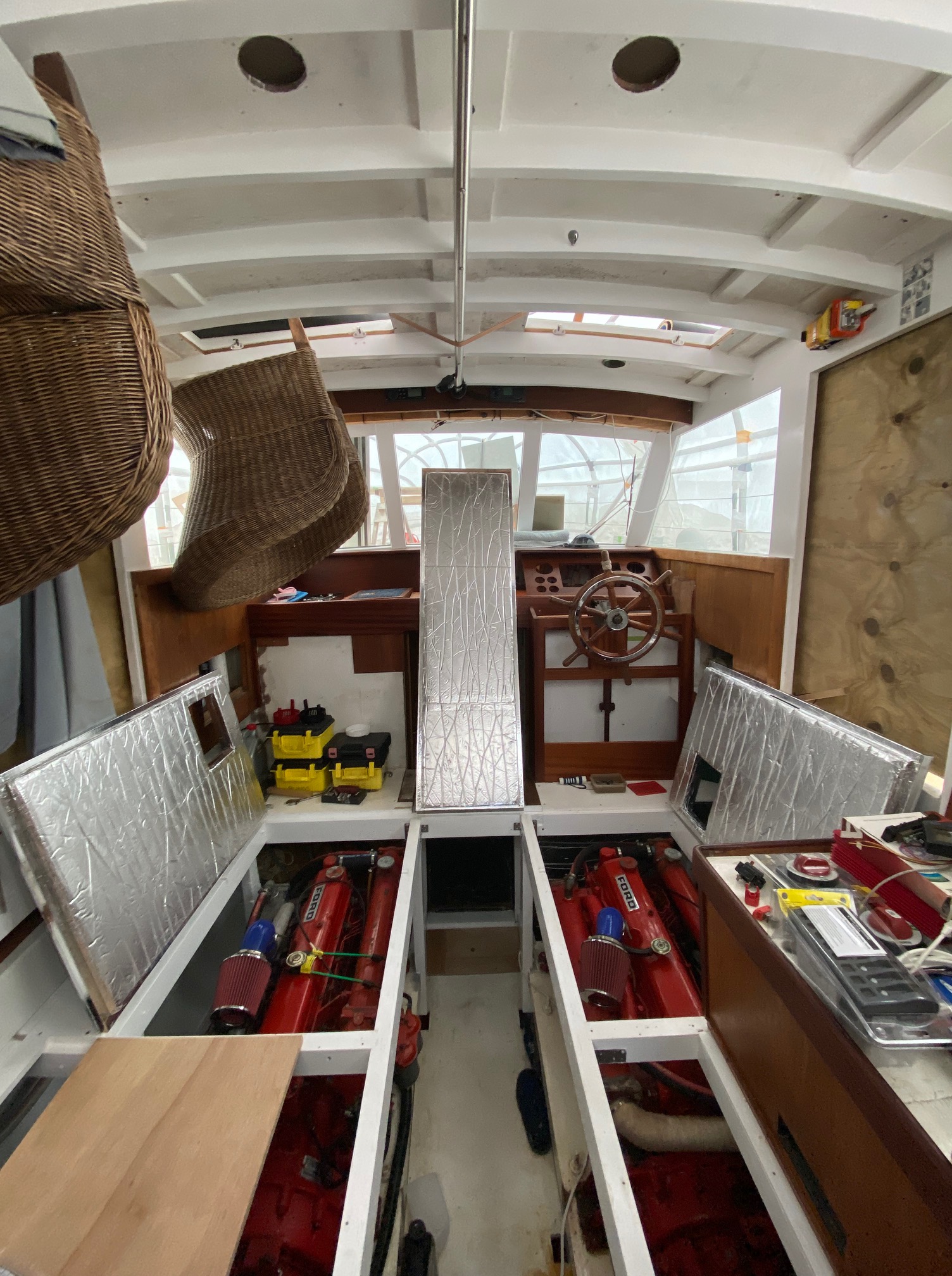

Hector deconstructed the chicken brooding shed and Manapouri was taken to Ken Lowes Boat Building shed in Ewings Rd. This slipway was originally Frank Ewen & Brothers Business in the earlier years. Here the motors, gearboxes and shafts were fitted. The original motors were Listers and were purchased from Schofields in Auckland. One of the Listers was reconditioned and gave some trouble over the years. The Engine Room was under The Wheelhouse floor. This floor was loose screwed so you could get to the motors. The Cabin top was made to a very high standard by John Roberts and was made so it could be removed with ease should the motors need to come out. Peter Macdonald replaced the motors and changed the cabin style to suit his needs.
The engineering work was undertaken by Ron Lowe who was a brother of Ken Lowe. Ron would have been one of the best engineers in the North. He was a hard man to peg down, he loved his beer and you could find him most days heading down to his main watering hole The Settlers Hotel. This old wooden pub was pulled down a few years ago and is now the site of the Whangarei Police Headquarters. It is thought that Donovans completed the Electrical works.
Once this work was finalized Manapouri was taken to Kioreroa Ramp by trailer. This was supplied by McBreen Jenkins and was a low loader used for D10 Bulldozers and was fitted out to suit Manapouri. With the help of Steve Bignall’s crane called Tiny, Manapouri was launched, and the man in charge of this operation was Peter Macdonald. (The same Peter Macdonald who later purchased Manapouri.)
Hector worked for many years operating the dredging bucket crane in Whangarei
Harbour. The skipper was Peter Diamond, and the Dredge was the William Fraser, and working for the Whangarei Harbour Board gave Hector a leg up regarding securing a berth for Manapouri.  He also ran a Charter Business taking fishing parties out of the harbour on Manapouri. He was tied up to the main wharf and lived aboard her for many years until he had “words” with the new Board regarding his operating his fishing business without a licence.
Throughout these years, Hector who was a poor sailor, would get violently seasick in a long oily swell and was unable to swim, hence Manapouri was built with high continuous handrails to her decks.
Hec, on moving from Whangarei Town Basin purchased a Bach at One Tree Point,
Black Smiths Creek. (This is now the New Marina’s Main Channel, and Hecs old property has a very expensive home where his Bach once stood.) Manapouri was moored on the inside channel opposite the Bach. She broke her moorings twice over the years, and the last time Hector boged his tractor and struggled to refloat her it was the last straw. He sold her to Peter Macdonald a short time later.
Hector and his wife (Noel Parks Mother) were moved to Rambourne House. There they lived until they died, Hector at 96 and his wife at 95.”
You can see & read more on her past at the WW link below

https://waitematawoodys.com/2014/01/28/mystery-launch-1-mahurangi-regatta-2014/

In the photo below with two adults and a backside in the clinker dinghy we have Hector on the oars and Frank Ewen with his back to the camera. Frank built the dinghy in 1946.
