CLASSIC LAUNCH – LADY CAROLE RESTORATION – UPDATE #5 Another update on the work in progress from co-owner Patrick Crawshaw.

UPDATE BELOW:

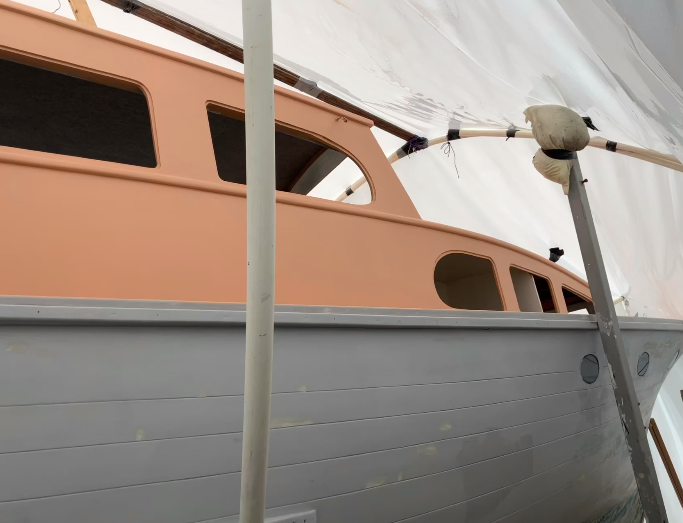

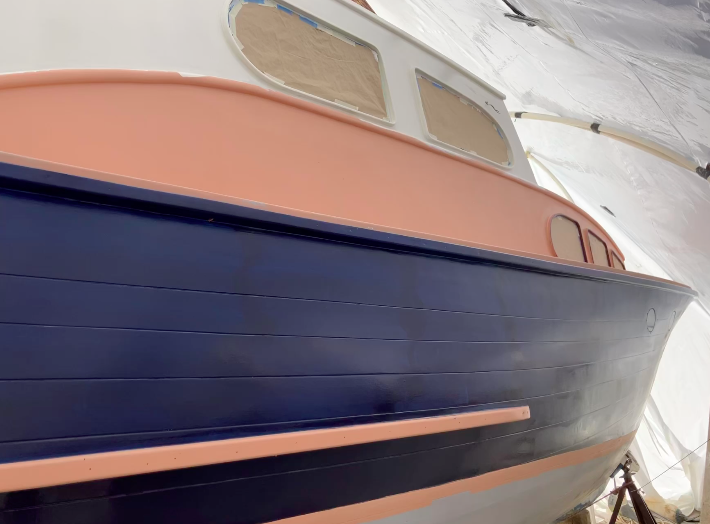

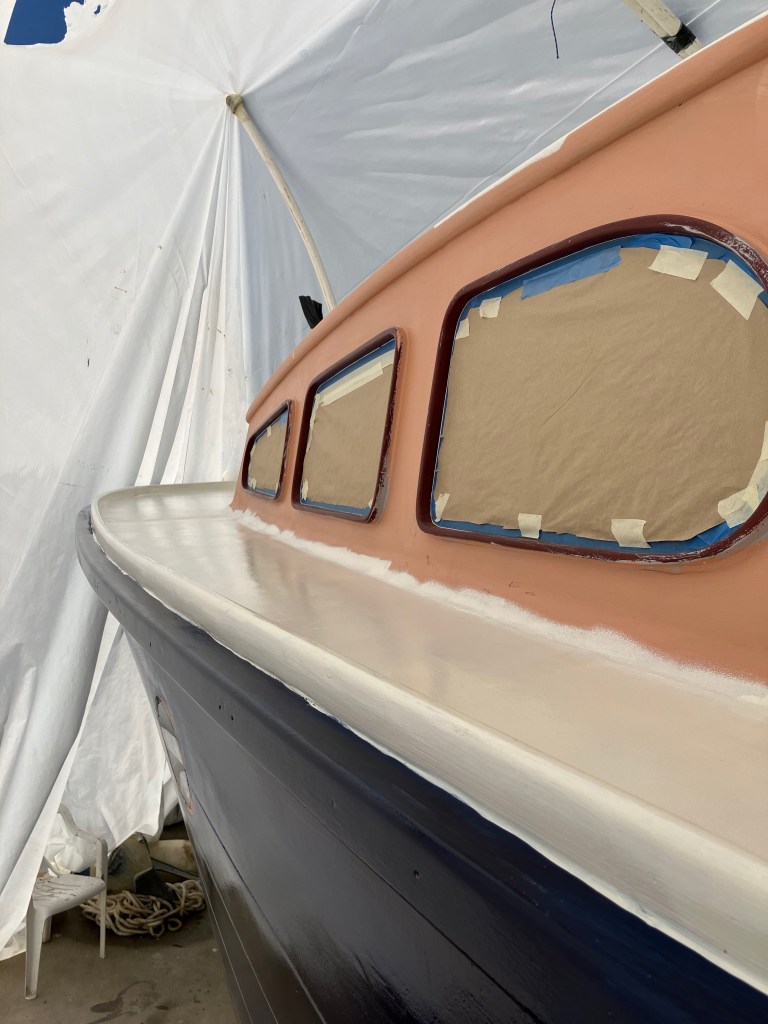

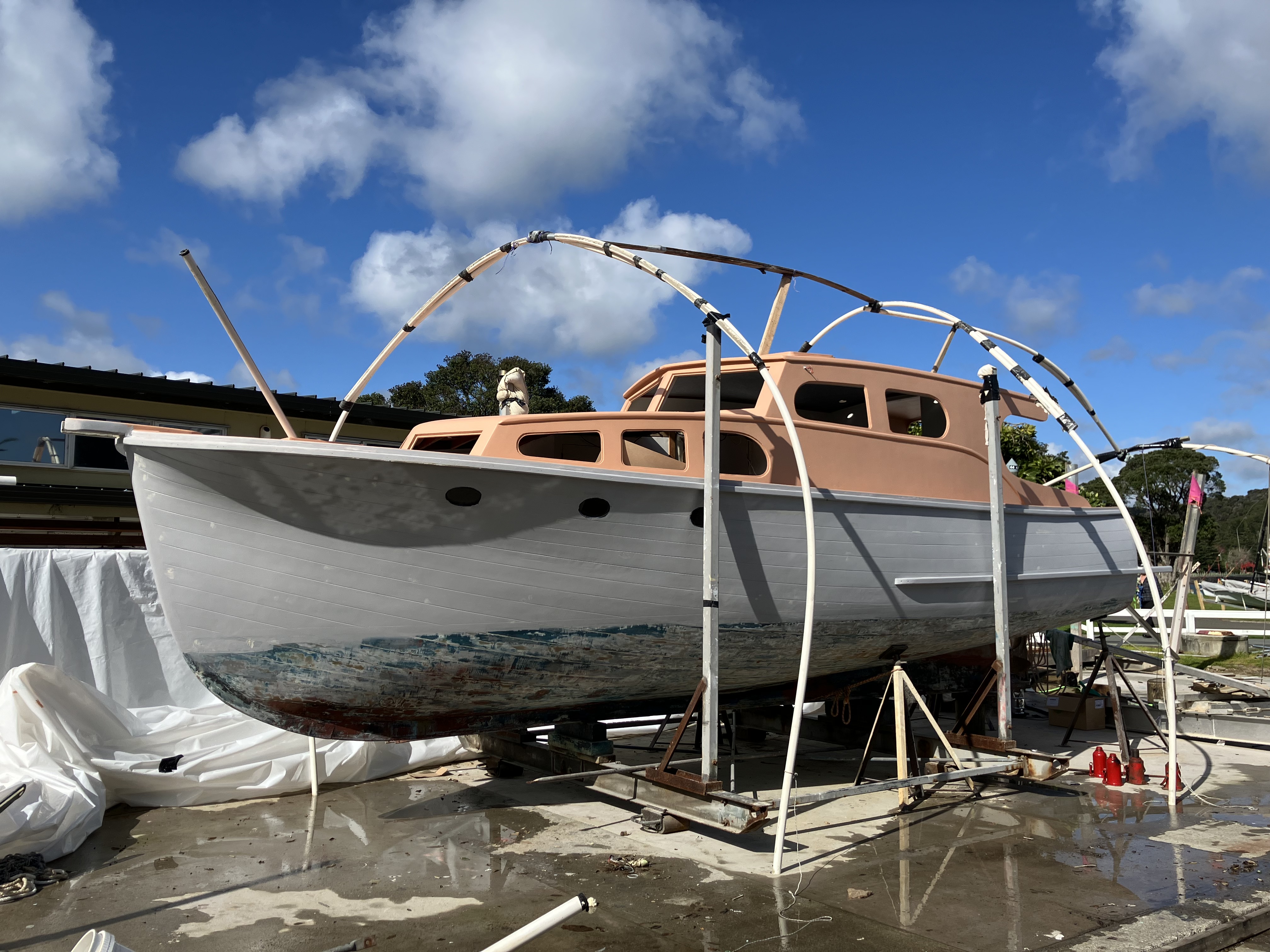

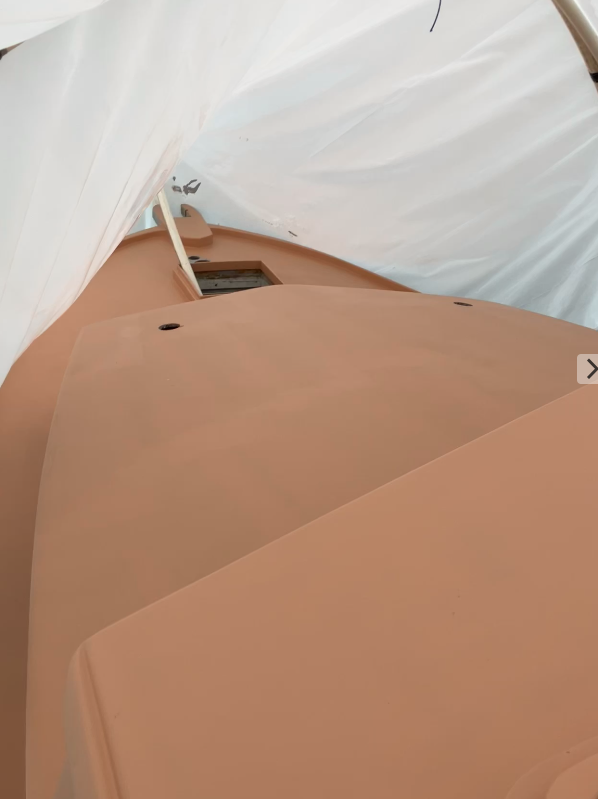

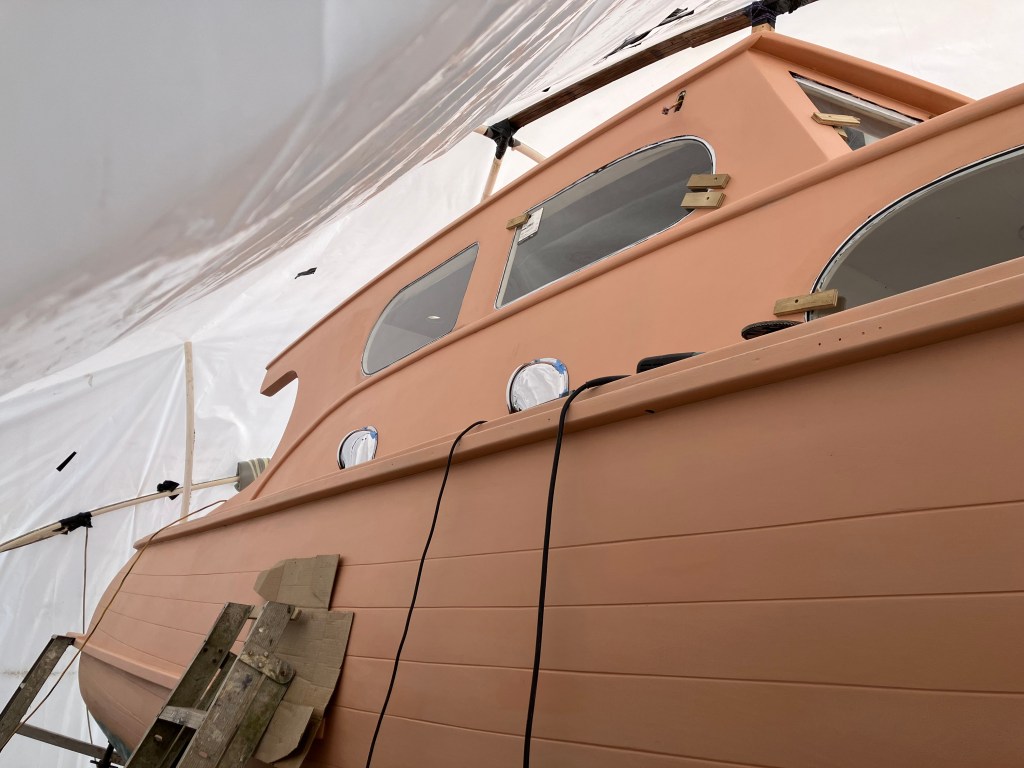

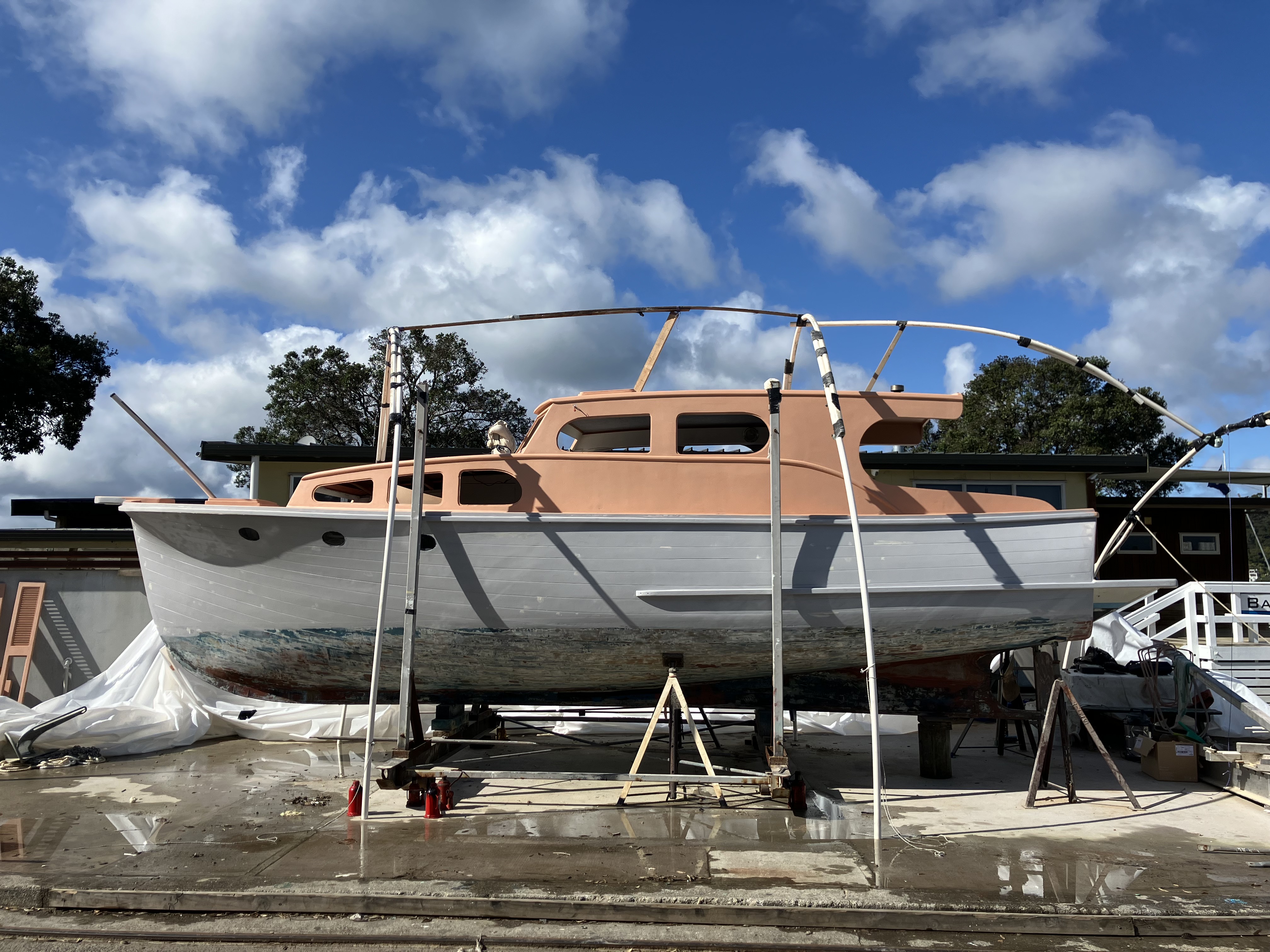

It’s been about three weeks’ since the last update and in that time we have finally got to the stage where she is ready for painting. We are working from top down and have got to the final undercoat (orange) down to the gunnels.  We have gone for a low-sheen, two-pot system for the whole boat with two primers, two undercoats and two top coats.

There has been the usual wild-Winter-Northland weather, which has hammered the cover, but it’s still holding up – not long to go now so. It just has to last until the windows go in and we get the finish coats on up top, which will be the week after next.

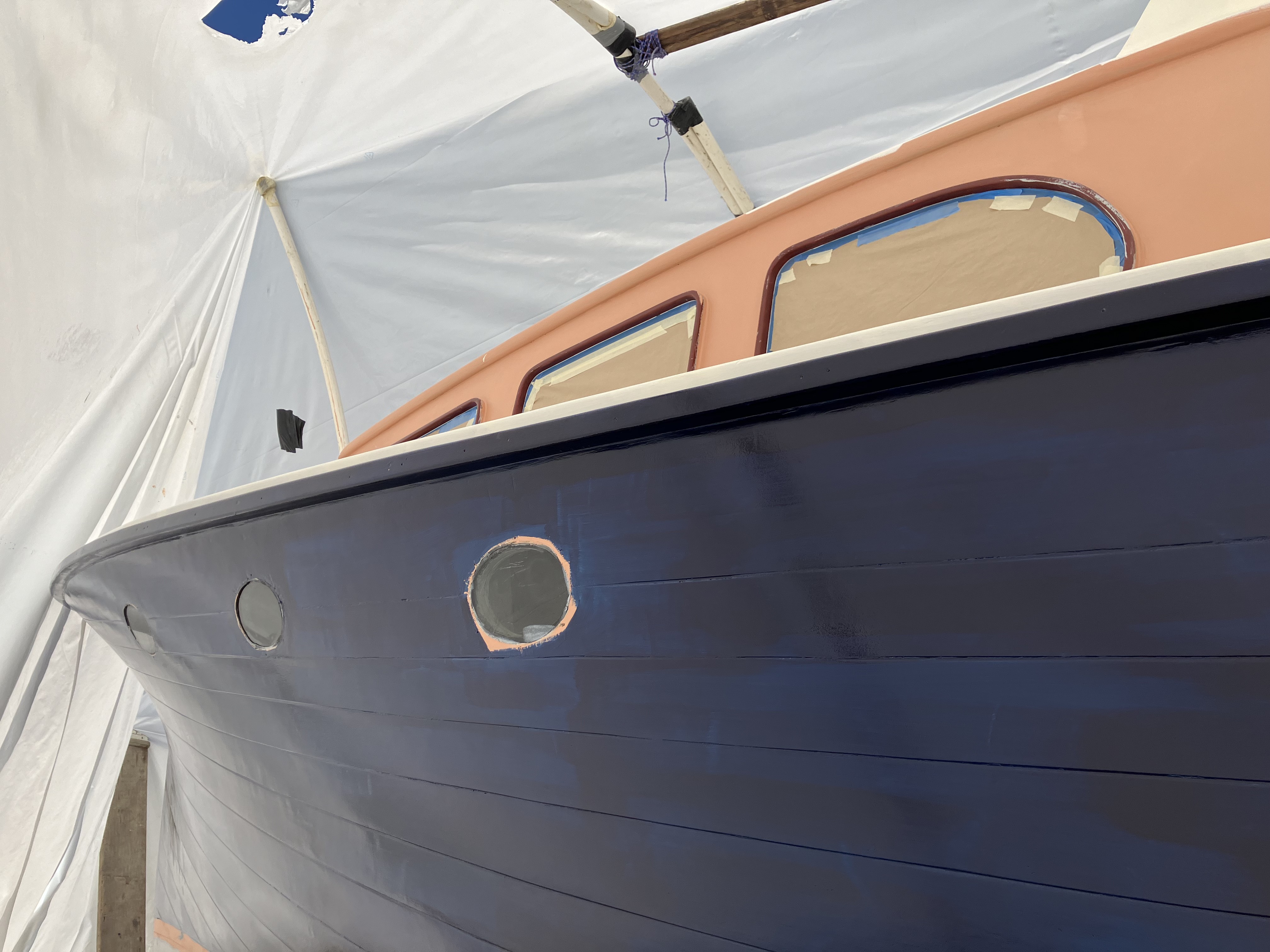

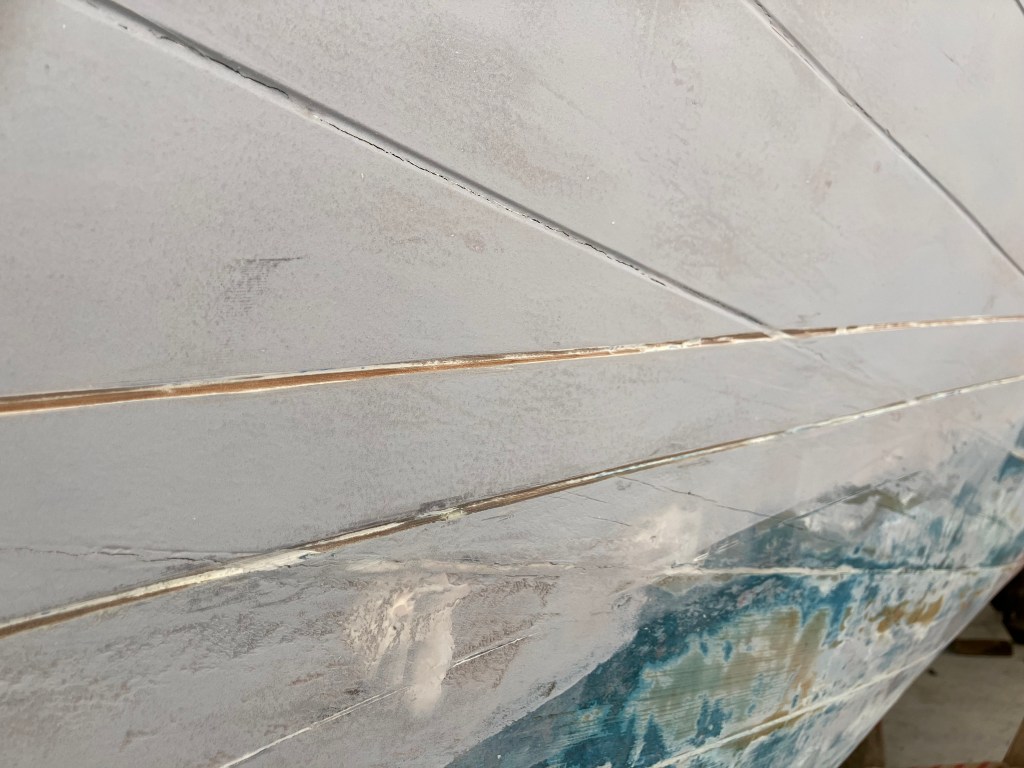

She had holes all over the place and many were in the side of the hull – including bilge ones. So, they have all been re-directed and moved to the under the duckboard where you can’t see them. The hull now is without any unsightly grills/holes/lettering, etc, etc. Nothing now to draw the eye away from the lines.

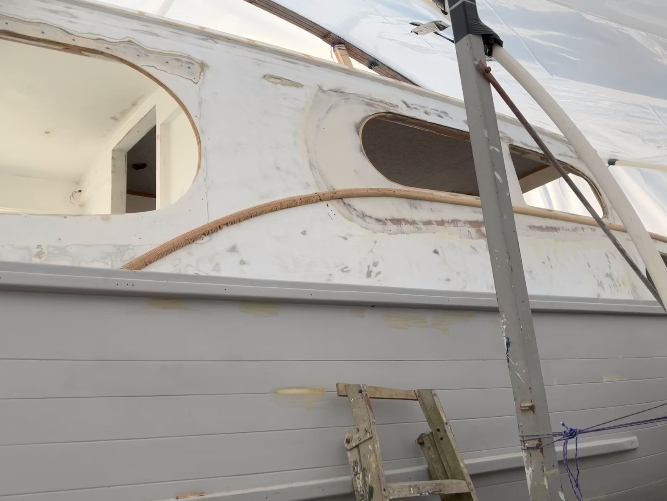

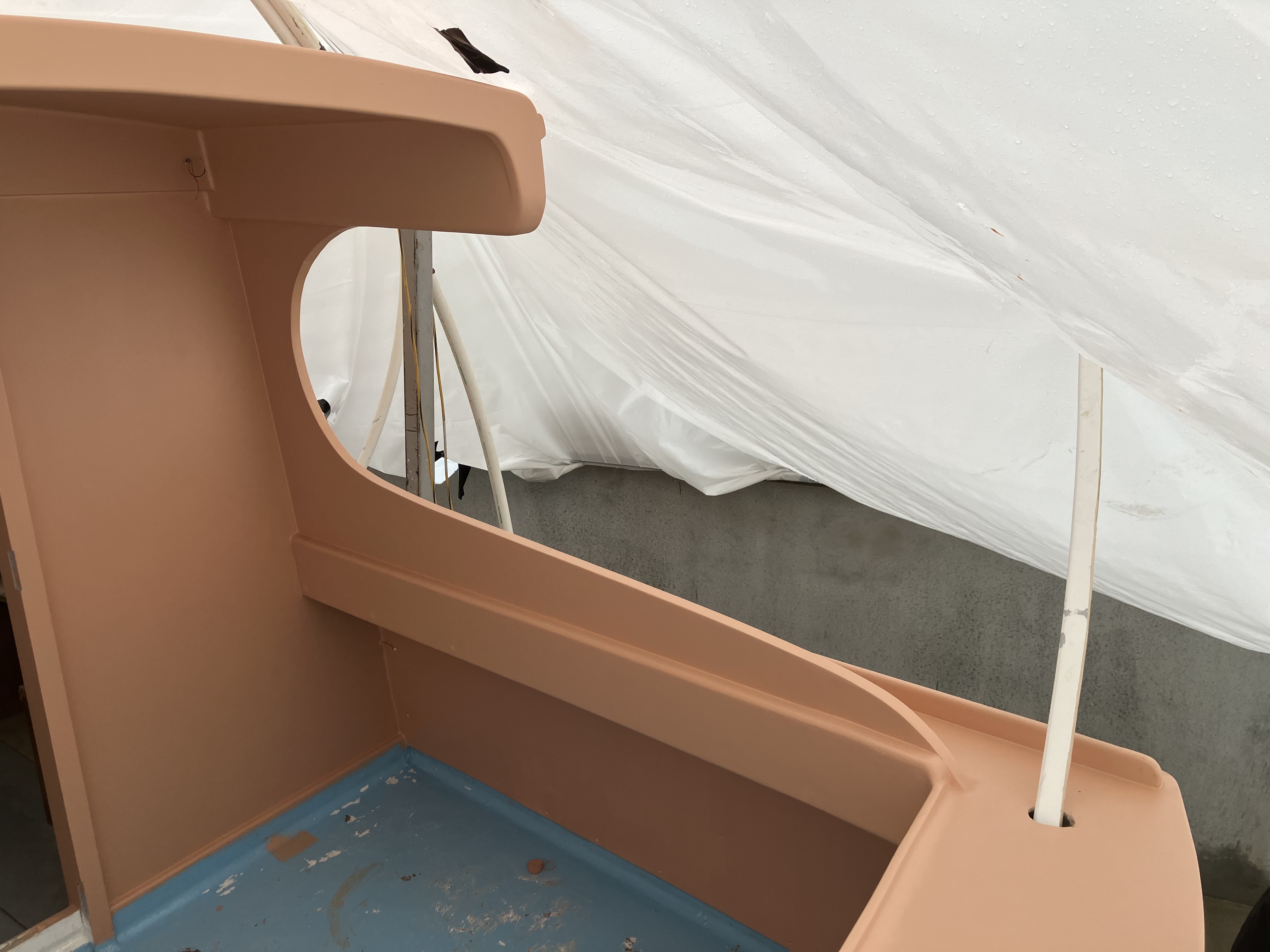

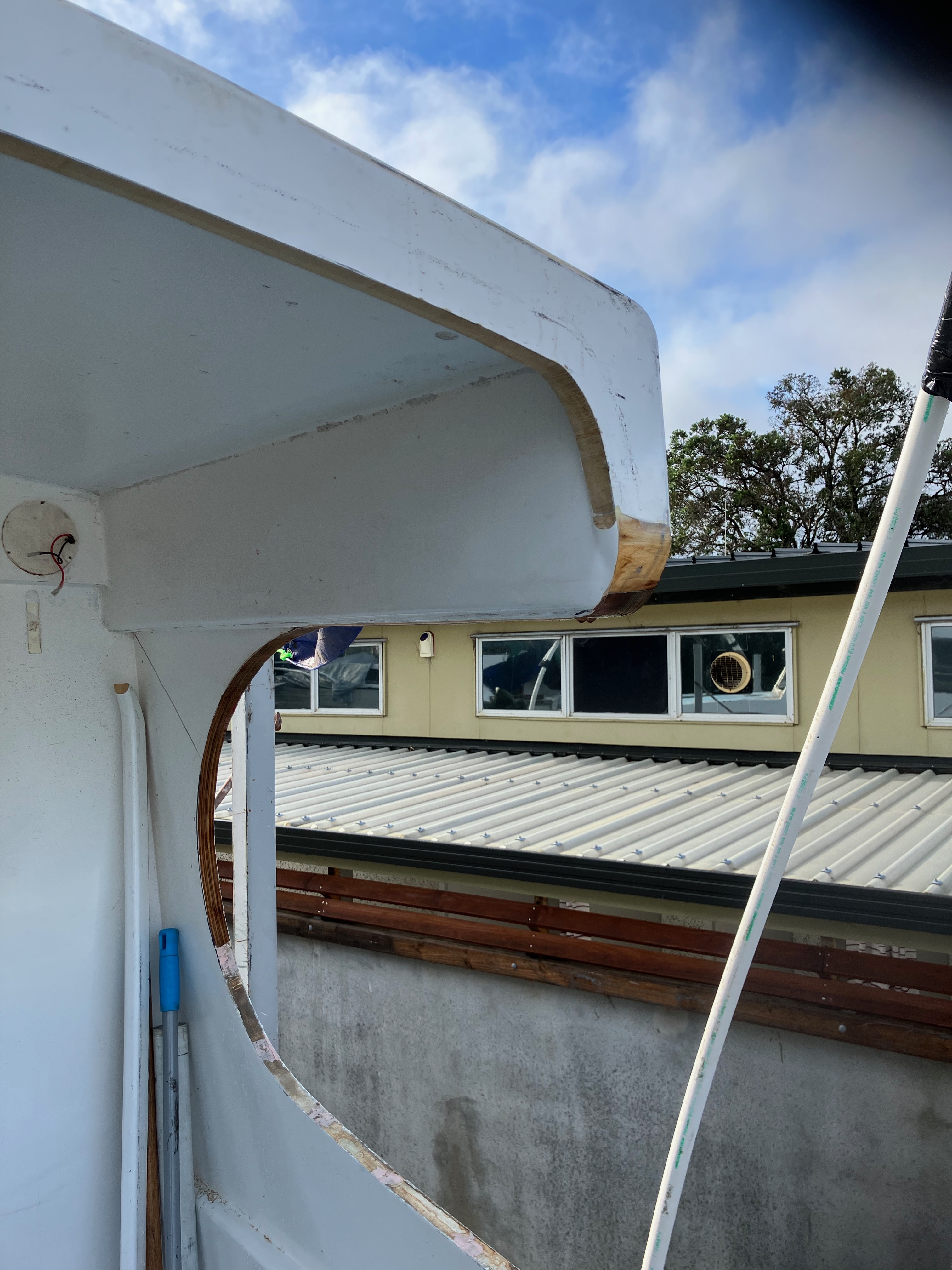

The line that connects the forward cabin to the aft deck is now re-instated. That was fun…Hundreds of cuts later, we got the curve, although it wanted to keep snapping. We took it all the way to the front of the forward cabin as it was. This has given the forward part above the windows a really nice profile.  Finally, the lines of the LADY CAROLE have been restored working nicely with those reduced windows.

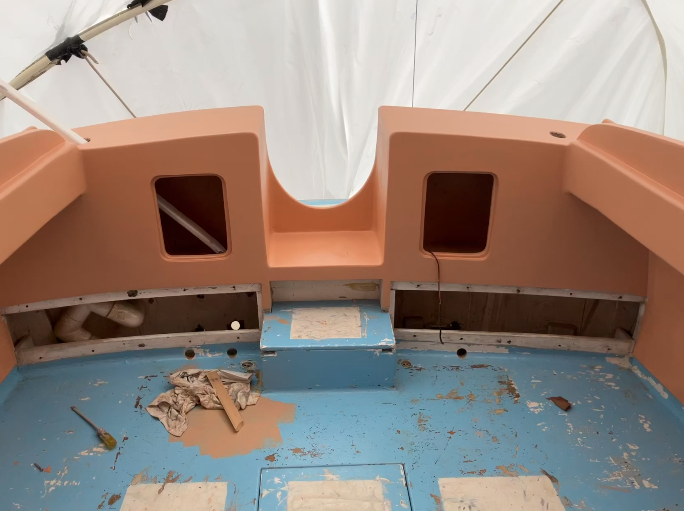

The cockpit drainage was a plastic box with a float switch. This never really worked properly and was prone to blockages, so the drainage for the cockpit has been returned to self draining with larger holes so they don’t get blocked.

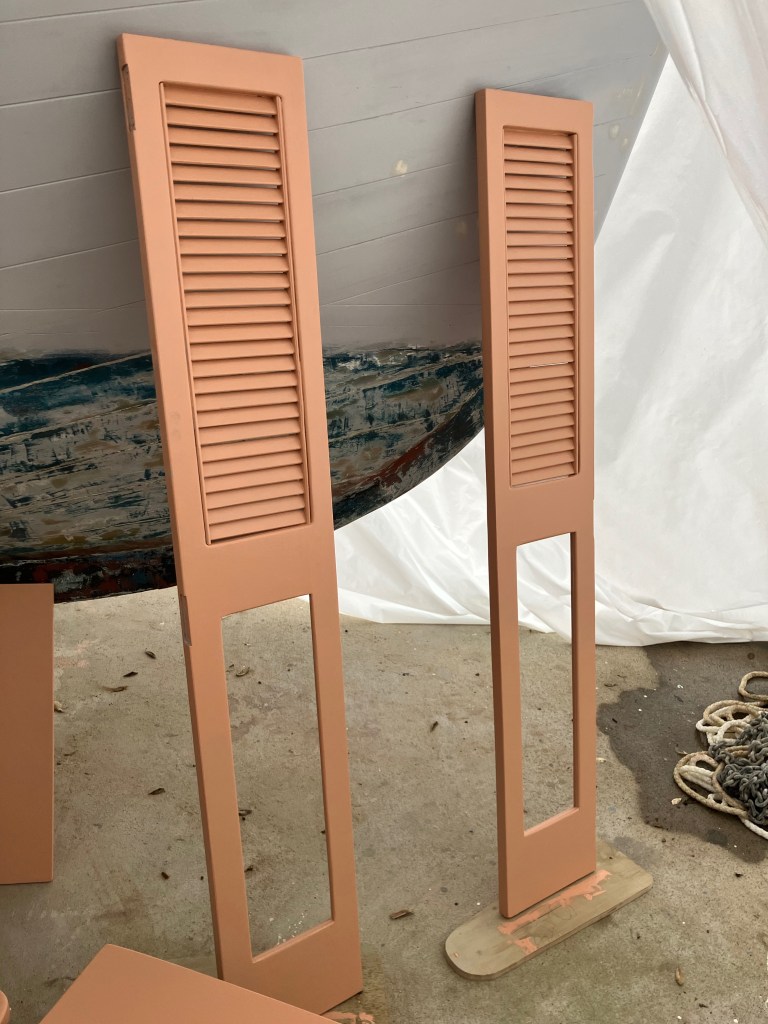

The back doors had brown smoky glass in both sections, so they were taken to a local joiner to have slats put in the upper section so we can improve cabin ventilation. Here they are almost ready for the top coats.

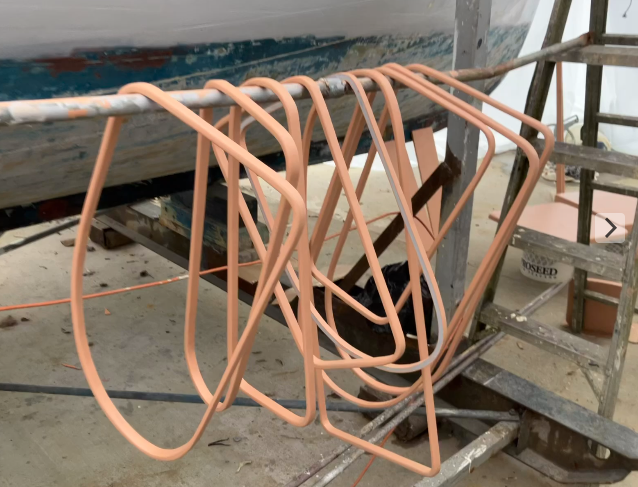

We decided that the trims should be put back on the windows to give it some profile and finish the look. Originally L.C. had trims, but these had long gone.

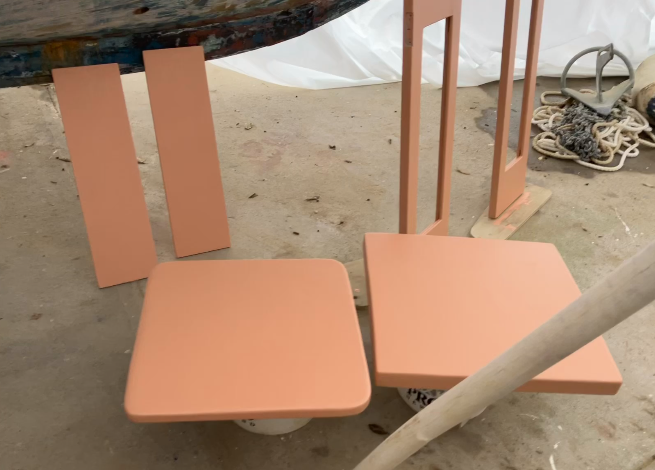

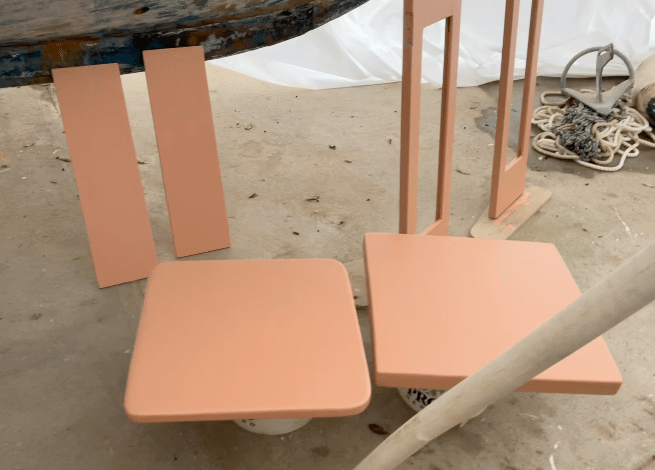

The hatches are finally finished and pretty much ready for their top coats.

CLASSIC LAUNCH – LADY CAROLE RESTORATION – UPDATE #3

Again co-owner Patrick Crawshaw walks us thru the latest work

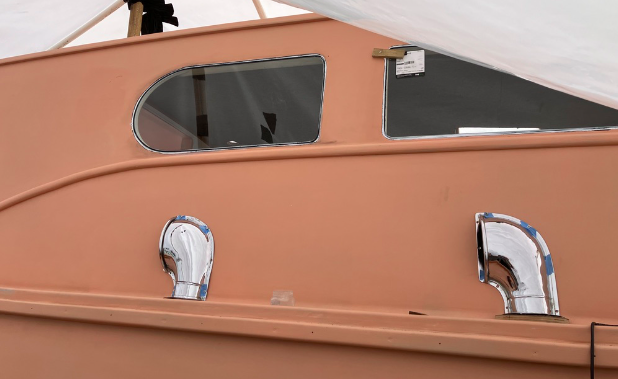

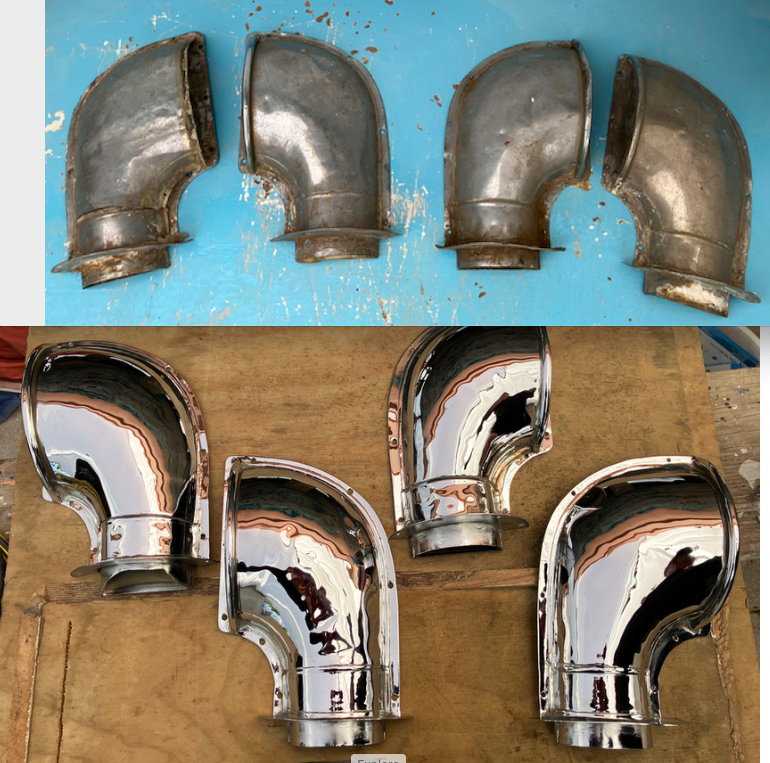

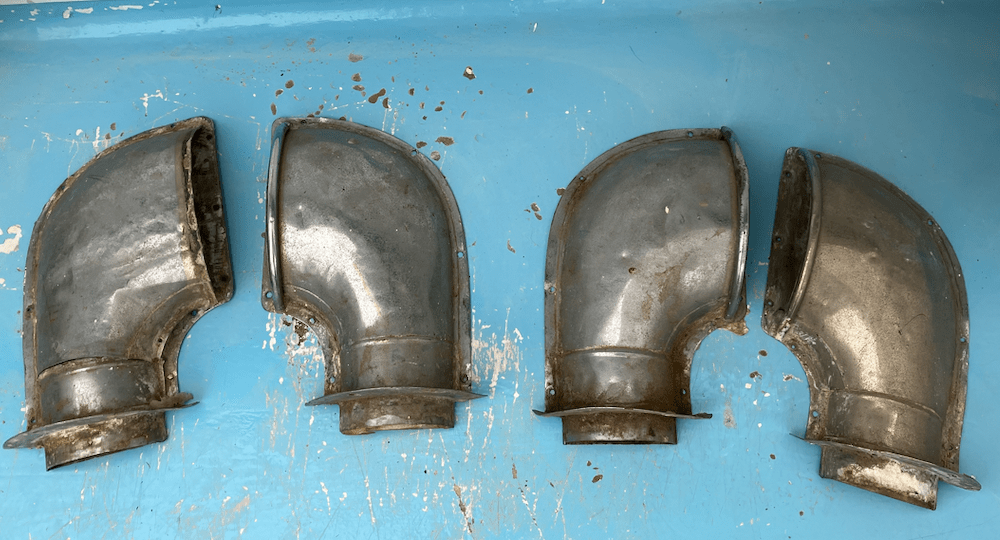

“First thing, I would like to say a massive thank you to Ron Trotter who after last week’s post got in contact with waitematawoodys to say he had the original cowl vents. He posted them up to the Bay of Islands and I had them on Tuesday.  This website is incredible for putting the right people together and after spending literally hours and hours searching the world online for these things, I was very happy that I have the original ones back. One closer inspection when they arrived, I could see they were made back in the day by hand, hence the reason I could not find them and even more of a deal that we had the original ones to go back on LADY CAROLE.  They will get panel beaten and tidied up and then have to go to be re-chromed.

This week has been a little more challenging, not in what LADY CAROLE has thrown us, but more in what mother nature has.

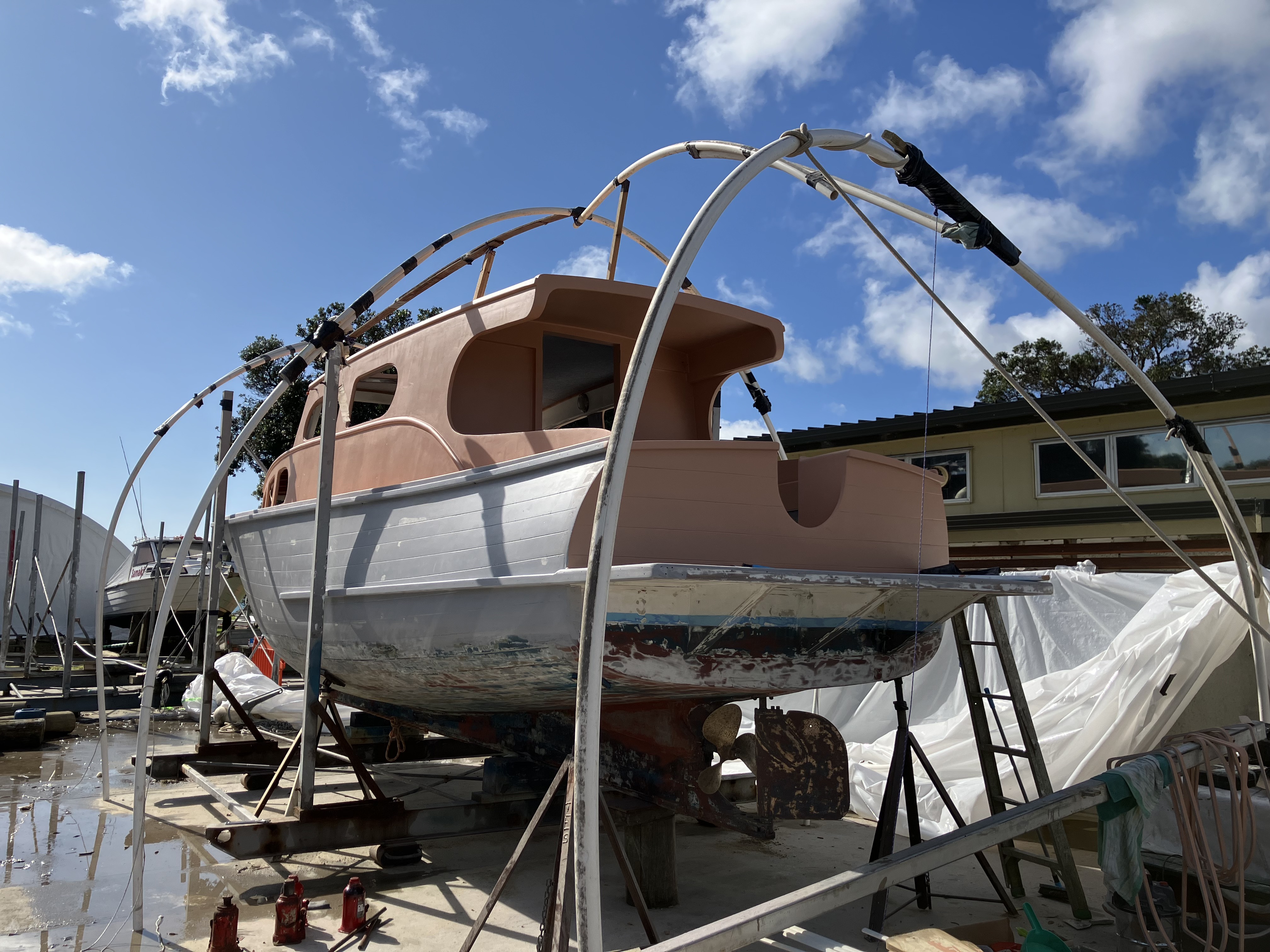

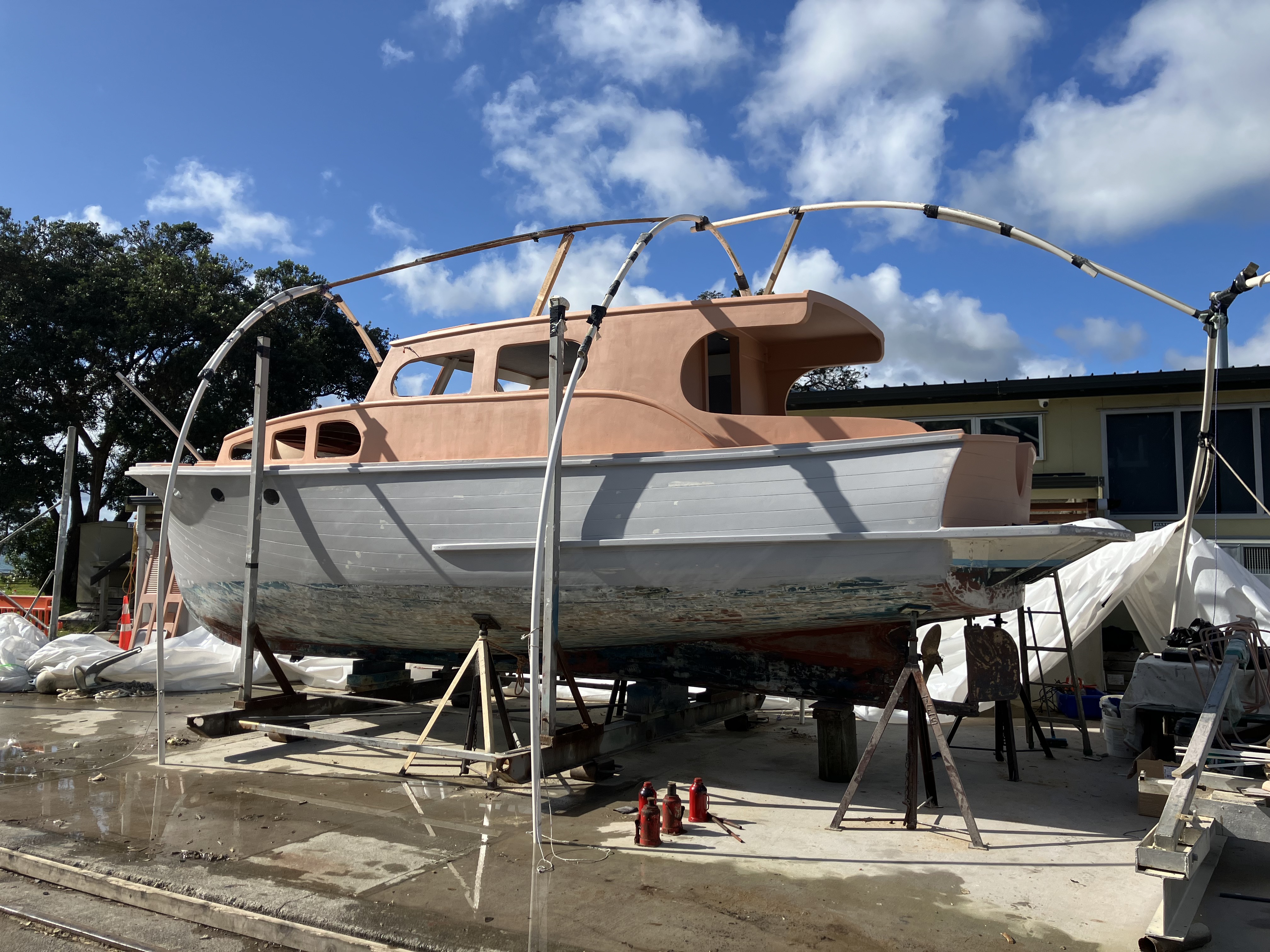

We are working through the Winter and have a limited time frame at the yard. The slipway closes during the Summer season because of the cruise ship passengers, which tender to the wharf there.  So, we ordered a large – very large – piece of plastic, the type of which is used for tunnel houses, to cover the boat and then we waited on a certain freight company who shall remain nameless,  and we waited….

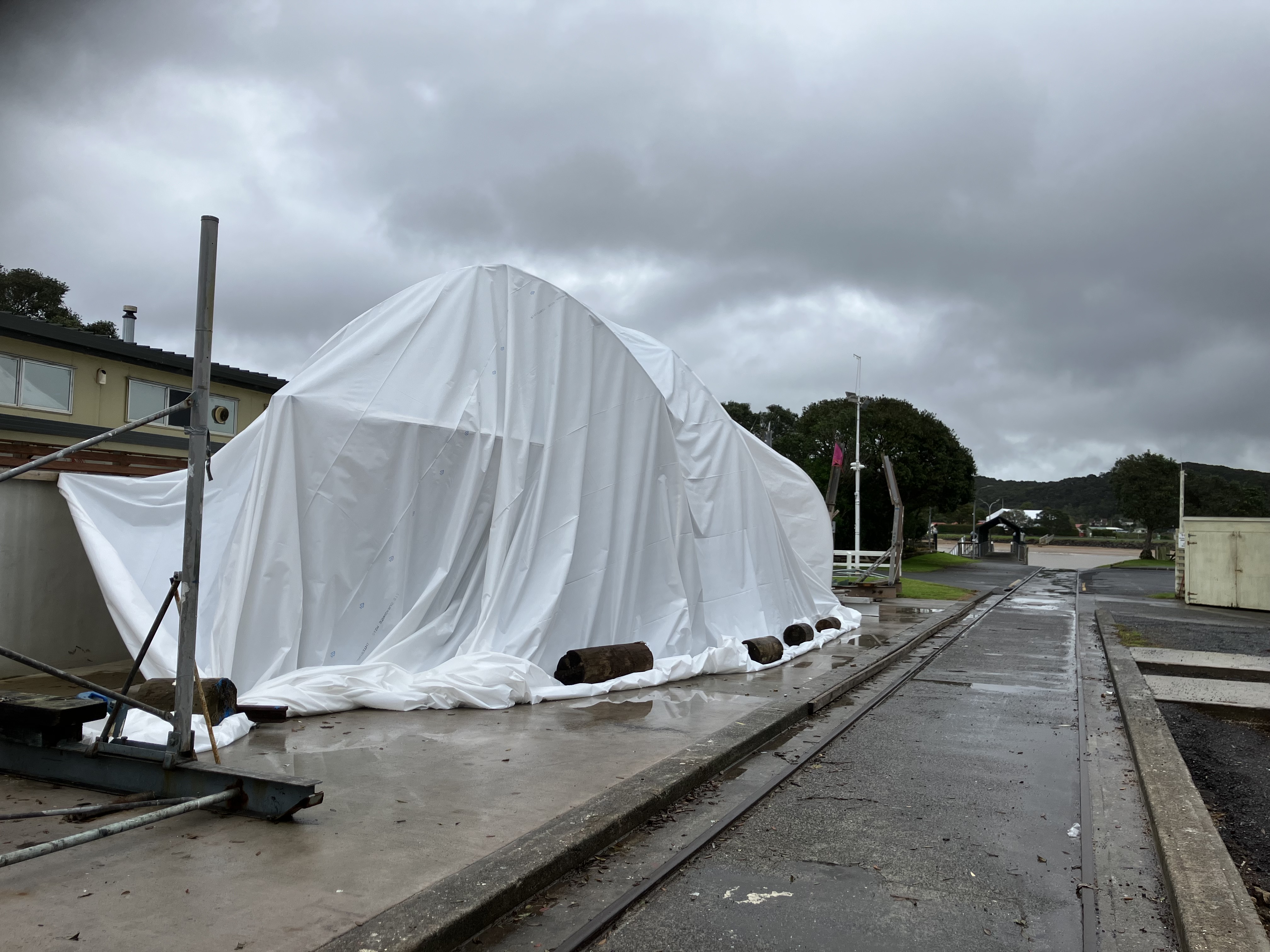

On Monday the weather delivered very low lying persistent fog, which hung around for most of the day. The boat was so wet, no sanding could take place, then on Tuesday and eight days later the plastic arrived. We tented the boat just in the nick of time and the heaven’s opened –  it hasn’t stopped raining since then. Then the power went out…., but luckily we could press on…

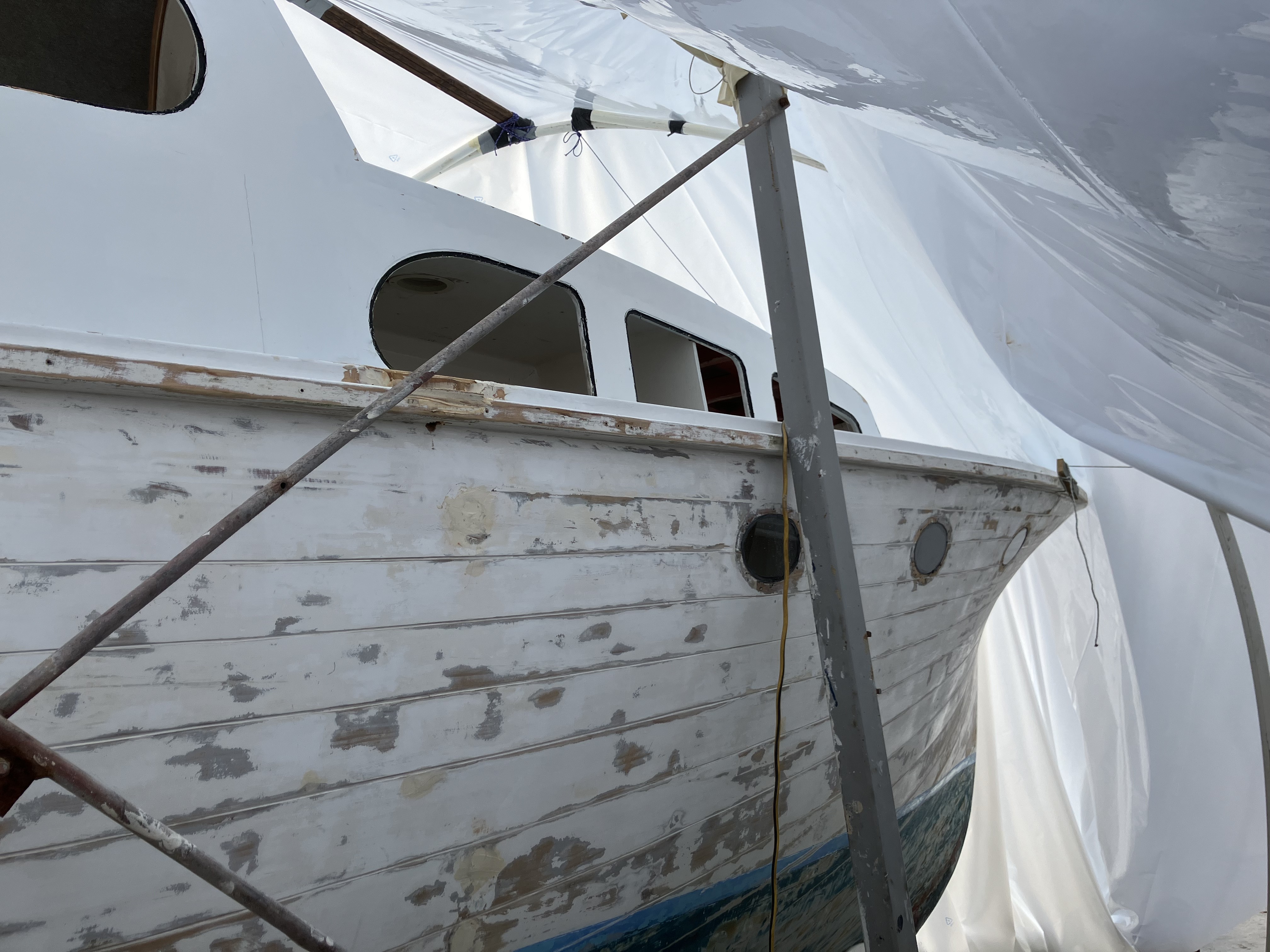

Now she is tented, we can remove things like steel/glass hatches (wooden ones need to go back) and the windows, which was done yesterday.

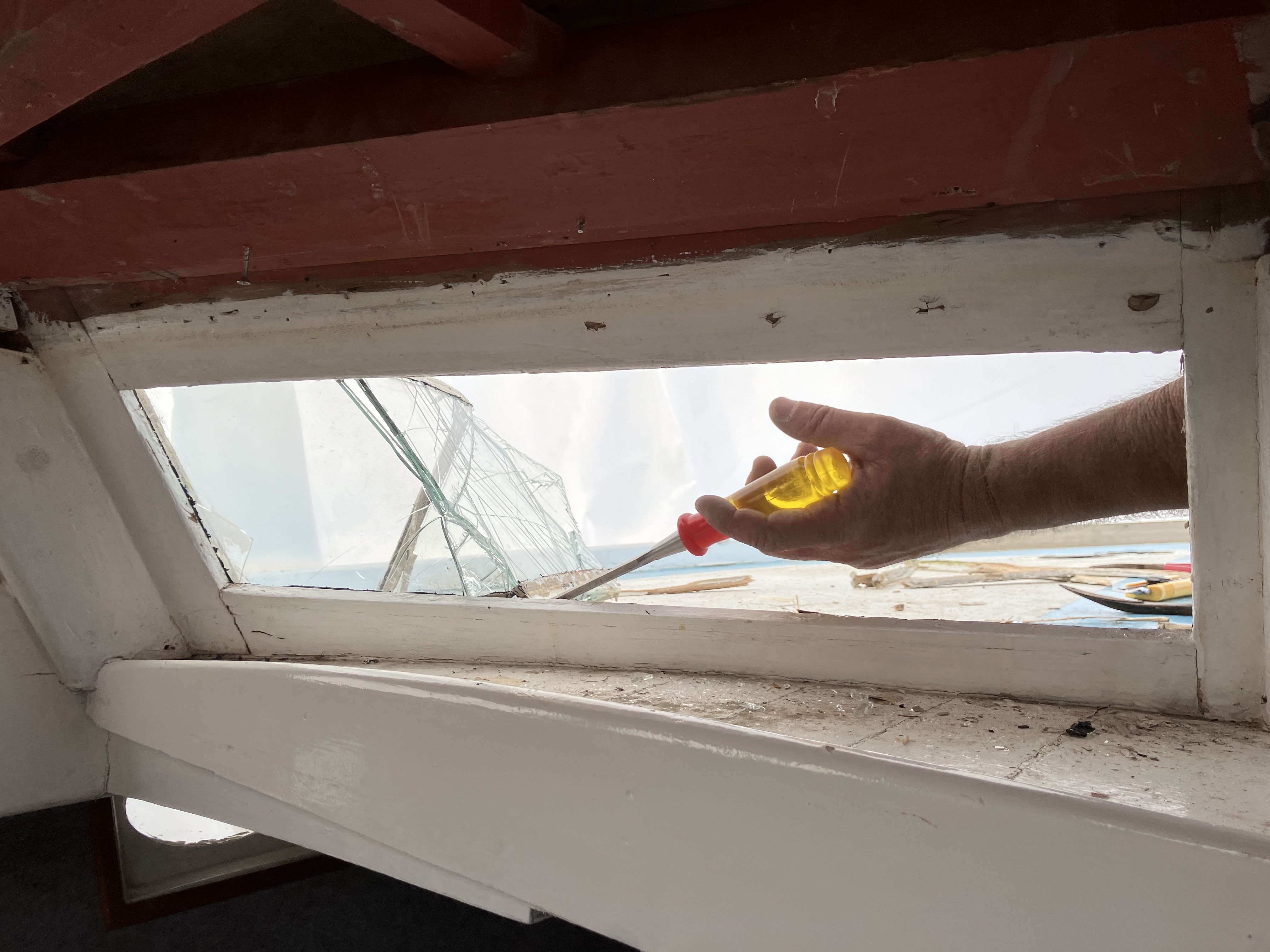

The windows were a tricky one as I am trying to keep as many of the original elements of the boat as possible and did not want to remove them, but we discovered over the years that they had been replaced as they broke, or as they were changed. The boat had a complete mix of different tints and types of glass and most were leaking, so they all had to come out. I decided after much deliberation to go for clear glass. The objective of this restoration is to try and get LADY CAROLE back to her launching look, and she would have had clear when launched, so that’s what we are going for, but in safety glass of course.

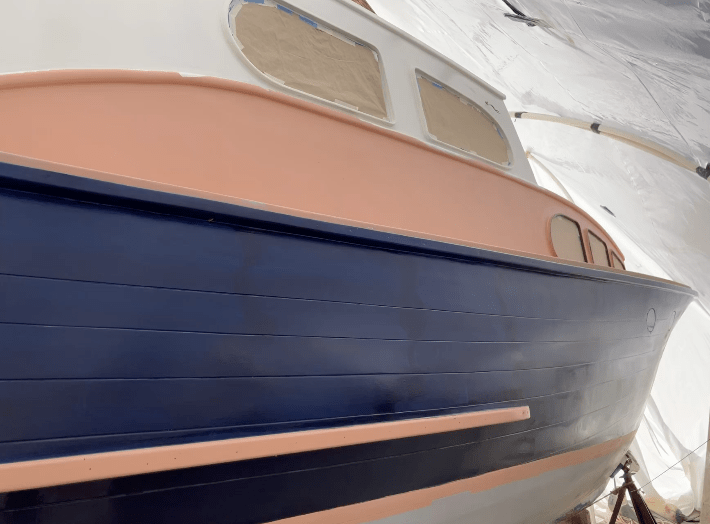

Sam, the Wynn Fraser rep has been helping with the colour scheme, which was posted previously.  The inspiration behind the colour scheme is the reddy brown she had in the 70’s on the side section, with the added addition of a deep blue hull with white pinstripes to break up the blue and make her lines pop even more.  It’s crucial that the blue works well with the reddy brown and that the white is not a bright white, more subdued almost like a mellow antique white.  The finish will be low sheen, not gloss as I think that belongs to the modern boats with their perfectly finished hulls.  The low sheen will give her more forgiveness.  The whole boat is getting a flexible two pot system for strength and durability.  Sam supplied the paint cards and test pots shown below to make sure they work on the boat and in the outdoor light.  The test pots were glossy, so the finished look will be more subdued than the photograph.

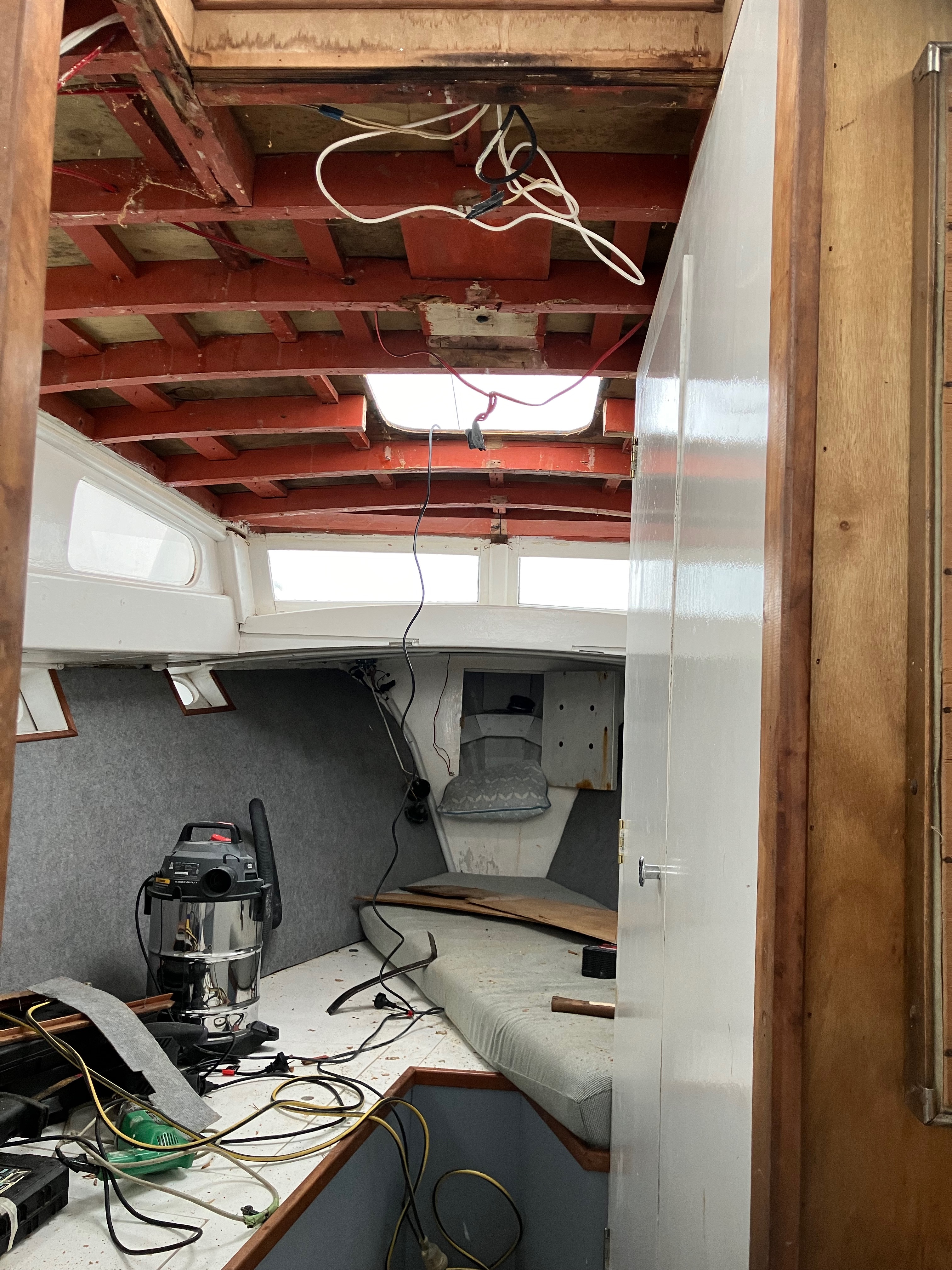

The ceiling in the forward cabin had to come down to sort a hatch that had been put in the wrong place.  When the boat was reconfigured a past owner put a hatch in the centre of the forward cabin (to let light in I think) and then covered over the forward hatch. They then moved the mast to the top instead of the centre of the forward hardtop. So, in order to correct this back, we had to remove the ceiling as one of the ribs had been cut to allow for the hatch and this was compromising the integrity of the roof. The new ceiling will have insulation and show the ribs to give a little more height.

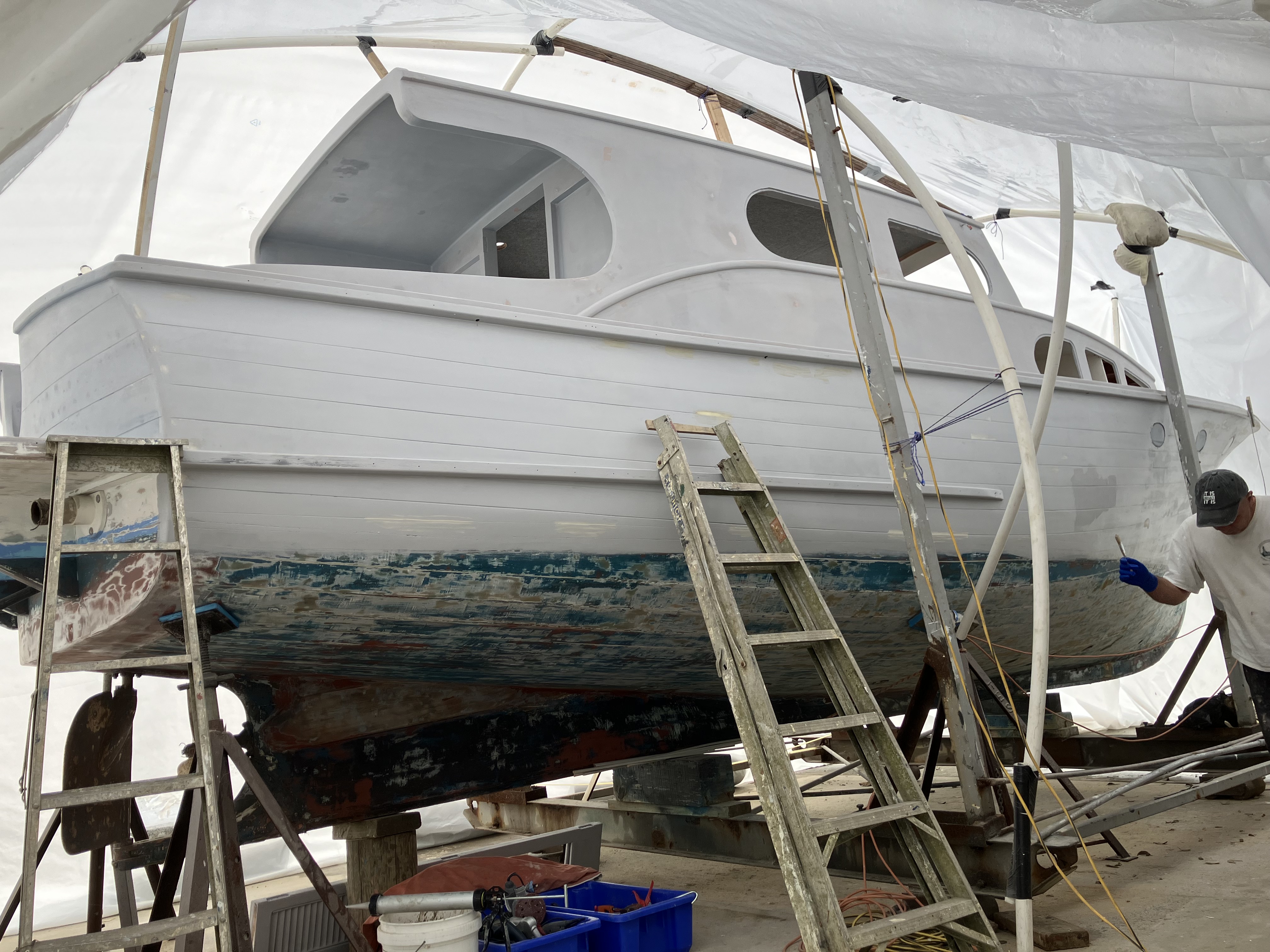

Meanwhile a lot of sanding has been taking place and we are almost there – well, first sand anyway.”
