Tag Archives: Couldrey

MOLLYMAWK – CLASSIC WOODEN BOAT

Posted on by
2

MOLLYMAWK – CLASSIC WOODEN BOAT
Today thanks to tme and Ian McDonald we get to view the Wellington based canoe stern wooden boat – MOLLYMAWK, built in c.1930 in Nelson by Jack Guard.  Her original name was  – VALETTA.Built from kauri her specs are 31’6” x 8’4” x 3’. Powered by a 20hp Hupeh engine.Current owner has had her for 25 years and commented that he has made 50+ Cook Straight crossing in the boat.

A PRODUCT PLUG – (I bought it, no trade bribes) Recently discovered a great boat wax, called ‘Meguiars Flagship Marine Wax’. Not cheap $85 for 475ml but so easy to apply and no residue white marks on fittings etc. The photos tell the story. Just had my boat out for some TLC at the Slipway Milford, her bottom was the worst ever, a sad reflection on the amount of use in 2024 ……….

AND SPEAKING OF PAINT JOBS / SHINE – check out the Couldrey clinker dinghy in the shed at the Slipway Milford, in the final stages of a high-end refurb – soon to be paired up with her Couldrey mother ship 😉

CLASSIC LAUNCH – LADY CAROLE RESTORATION – UPDATE #4

Posted on by
2

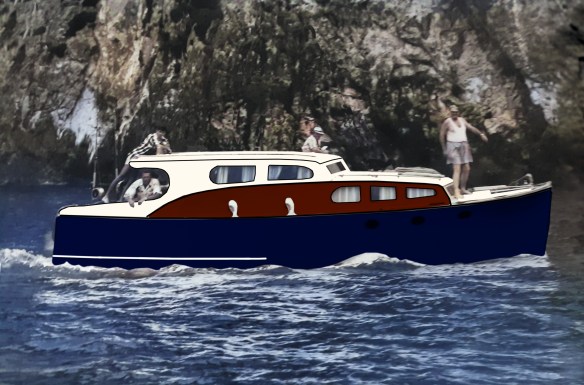

Mock up of potential new paint

CLASSIC LAUNCH – LADY CAROLE RESTORATION – UPDATE #4

Today co-owner Patrick Crawshaw walks us thru the latest work, different layout today, might make it easier to follow.

The last couple of weeks have been focussed on getting the sanding finished for first coat and the wood work finished.  The forward hatch, which had been blocked up was re-instated. Tthe forward cabin, where the mast once was had been opened up to make way for a hatch. Two of the ribs had been cut into and this was compromising the strength. So, ribs were replace and the hatch filled in so that the mast can go back to its original location.

The main cabin hatch (shown below) which is above the helm had to be moved inward to allow for the railings to match the other side – from front to back. At some stage, it had been cut too close to the port  side and so the railings had to start back behind the hatch which looked awful.  This is about the lines – again.

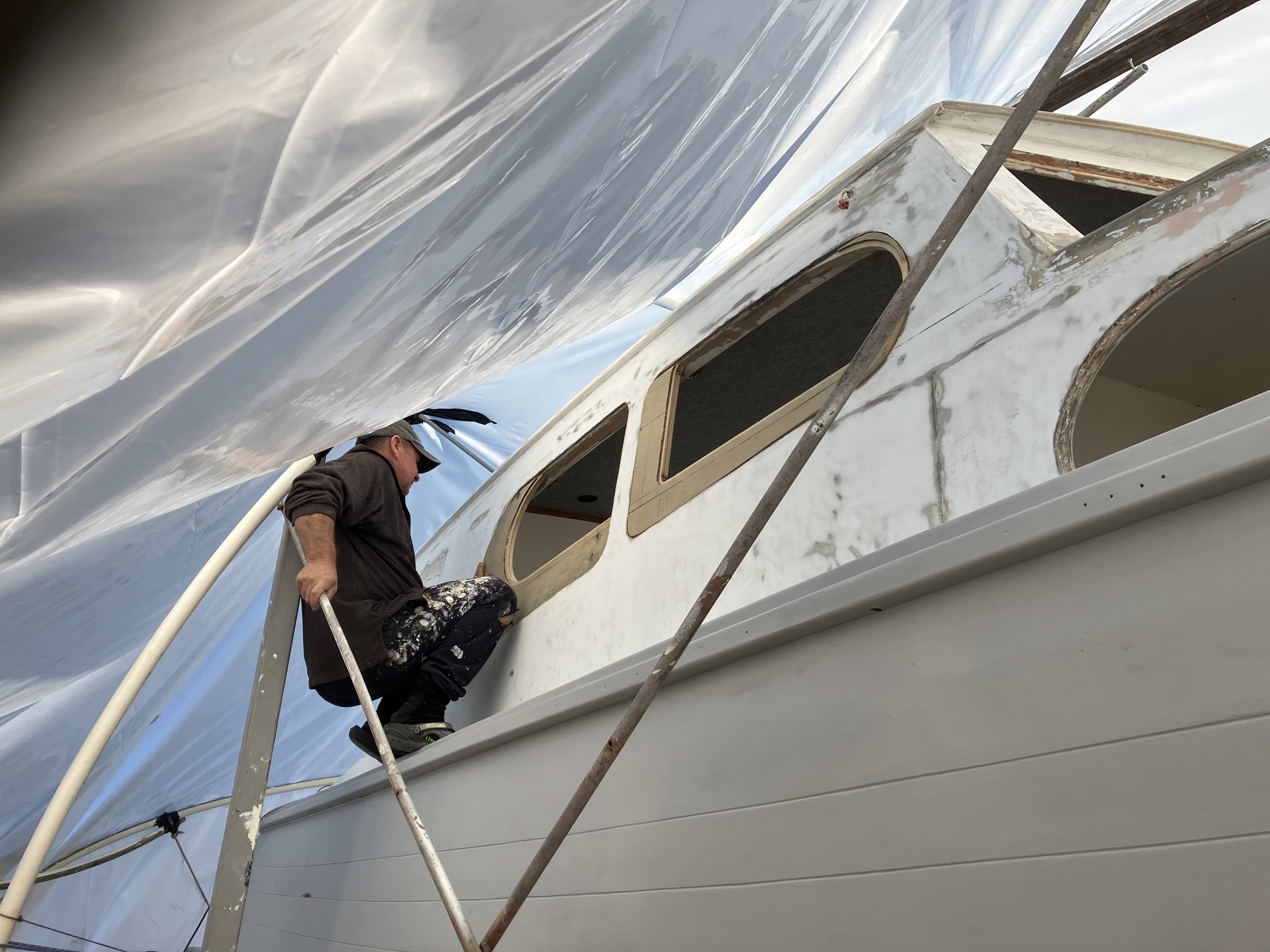

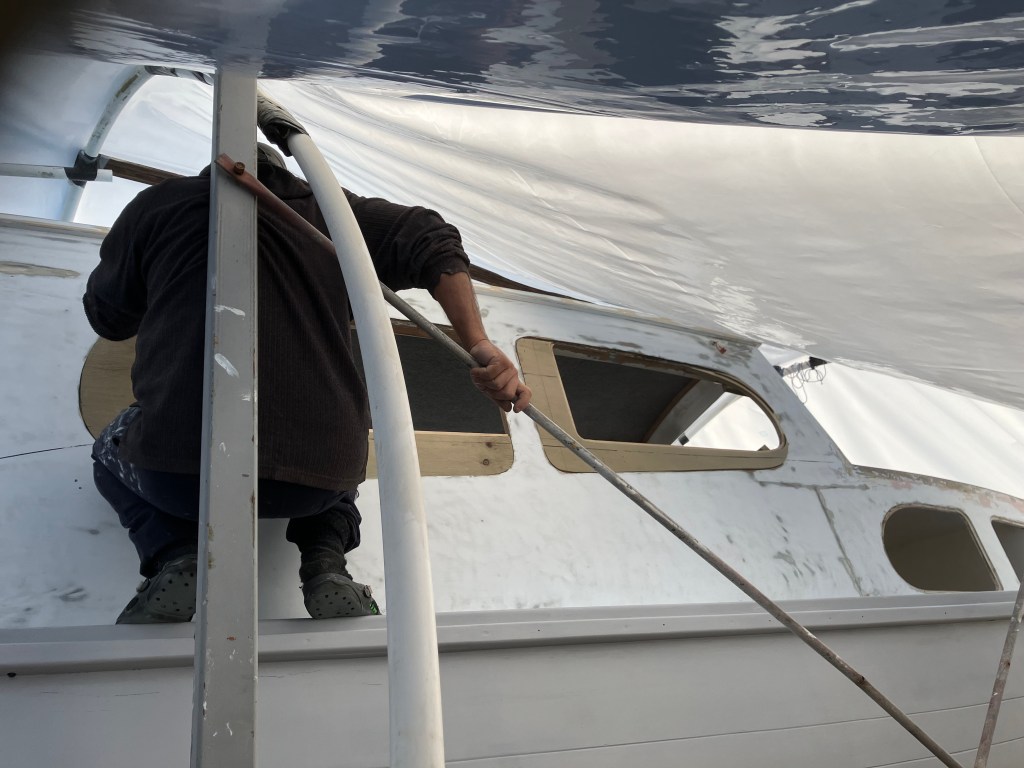

The windows have been a complex and long process. Firstly, we had to find the old curved line which ran along the side connecting the forward cabin to the aft curve.

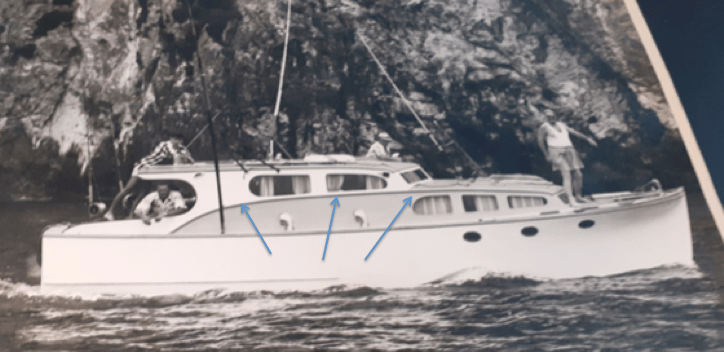

We had to completely fill the existing windows in so that we could draw that line. Once that was drawn, we could then find out where the windows (from the photograph above) once were.  The filled in ply was then taken out and cut to the new window lines. Then they had to be rebated for the glass to then be glued in. Next week is the glass templates and once the glass is in, we will have to cut the trims to go around the windows… The windows have been the most complex part of the job with so many elements and stages to the process. It’s so important we get this right, as they are crucial to the lines of the boat, and we can only work off this photo and a few other tell tale signs.

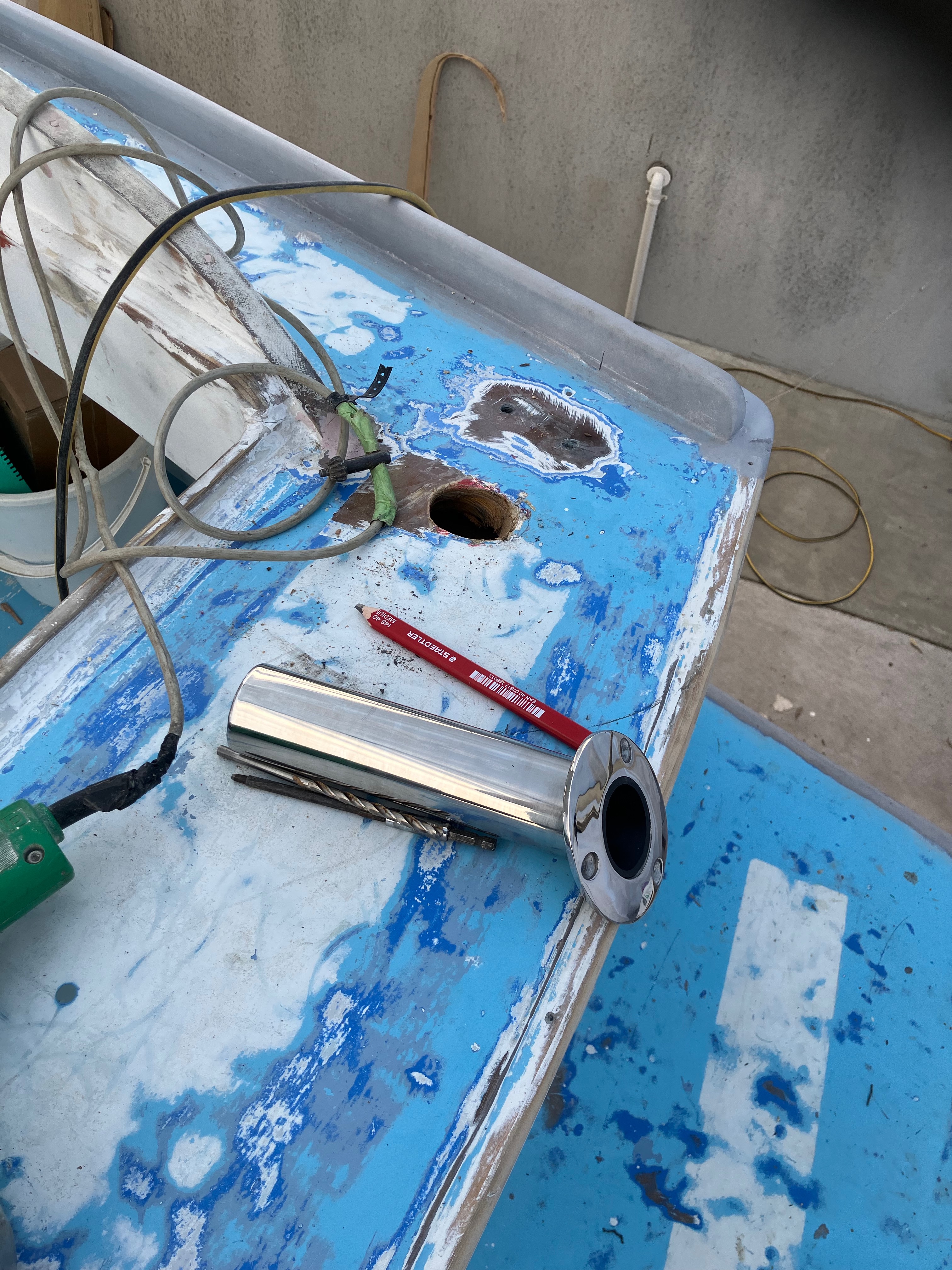

Rod holders…such fun getting the angle right so they are flush on to the transom.

Clevedon Woody Mooching

Posted on by
Reply
Lady Gazelle
Mystery Couldrey
Antares

Clevedon Wood Mooching

Had a good excuse to point the car south yesterday so took a side trip to Clevedon and mooched around one of the ‘private’ docks.

Very pleased to see that work is underway of Lady Gazelle, you may recall back in March she came to grief during Cyclone Gabrille (WW story link below) – a new owner has stepped up and we look forward to her relaunch. https://waitematawoodys.com/2023/03/02/lady-gazelle-on-the-rocks/

The mystery Couldrey has been put out graze but is all rugged up for winter. Last appeared on WW back in August 2022 – link below  https://waitematawoodys.com/2022/08/16/a-call-for-help-2/

I spotted the 36’  c.1950’s launch – Antares , one of the better looking launches to come out of the Supreme Craft factory. More on her a future story. Previous WW story and lots of photos here https://waitematawoodys.com/2019/09/25/antares-2/

Also a few boats, below, looking unlikely to see the ocean again.

Cleone – A Peek Down Below

Posted on by
1

CLEONE – A Peek Down Below

The Jim Young built, Couldrey design launch – Cleone, has appeared on WW before – link below, lots of details and photos. Now thanks to Ian McDonald and tme we get to have a peek down below.

Quick over view- built c.1950, triple skin kauri, 30’ in length, 10’ x 5” beam. Powered by a Ford 72hp diesel. Previous WW Story https://waitematawoodys.com/2021/06/11/cleone-2/
