ALMEDA – MAPUNA – Sisters? Recently Alan Sexton and Mark McLaughlin were plating hooky from work to check in of the launch Trinidad that is receiving some serious TLC at Greg Lees shed at Sandspit.
Back in February 2017, Alan sent in some photos and details on a local (Matakana) classic launch named Almeda, at the time he commented that the designer was unknown but it appeared to have John Brooke’s name all over it – link to that story here https://waitematawoodys.com/2017/02/02/almeda/
While at the Lees yard they spotted Almeda hauled out at Sandspit Yacht Club and are both sure she is a slightly updated version of Mark’s launch – Mapuna. Alan commented that Almeda’s keel is obviously rather more substantial and that Greg Lees told him they fitted the deeper keel to Almeda quite a few years ago for the previous owner. The pieces attached to the keel are the lead ballast relocated from the bilges. She has a reduced transom tumble home but the bow and hull lines look identical to Mapuna (first photo below ex Mark).
Mark is keen to hear peoples thoughts re comparing Almeda and Mapuna with Tarata, also by J Brooke. Tarata is rather deeper in the forard sections, no doubt to provide the buoyancy required to offset the forward mounted engine in the smaller hull. (Refer second photo below, also ex MarK). https://waitematawoodys.com/2016/11/21/tarata/
So woodys – thoughts, comments, opinions ?
Harold Kidd Input – There was a strong connection between Snow Waters and Jack Brooke, witness SCOTT COLVILLE. Robert Brooke worked for Snow about this time and will know exactly what the story is about these designs.
Yesterdays winner of the Off Center Harbor cap was – John Hunter, with the answer Lady Ellen
Today’s ww story one of the ones that makes it all worth while – Alan Sexton contacted me a while ago trying to track down a launch his father (Howard) owned in the 1970’s – Tarata. Never confirmed but the family believed the 32′ sedan launch was built by Snow Waters, possibly to a Couldrey design. Alan had not photos of her & the last known where abouts was that she was moored in the Tamaki Riv just up from HMB.
Alan’s father sold her to a Wayne Kidd (the broker at HMB) and a partner in 1979.

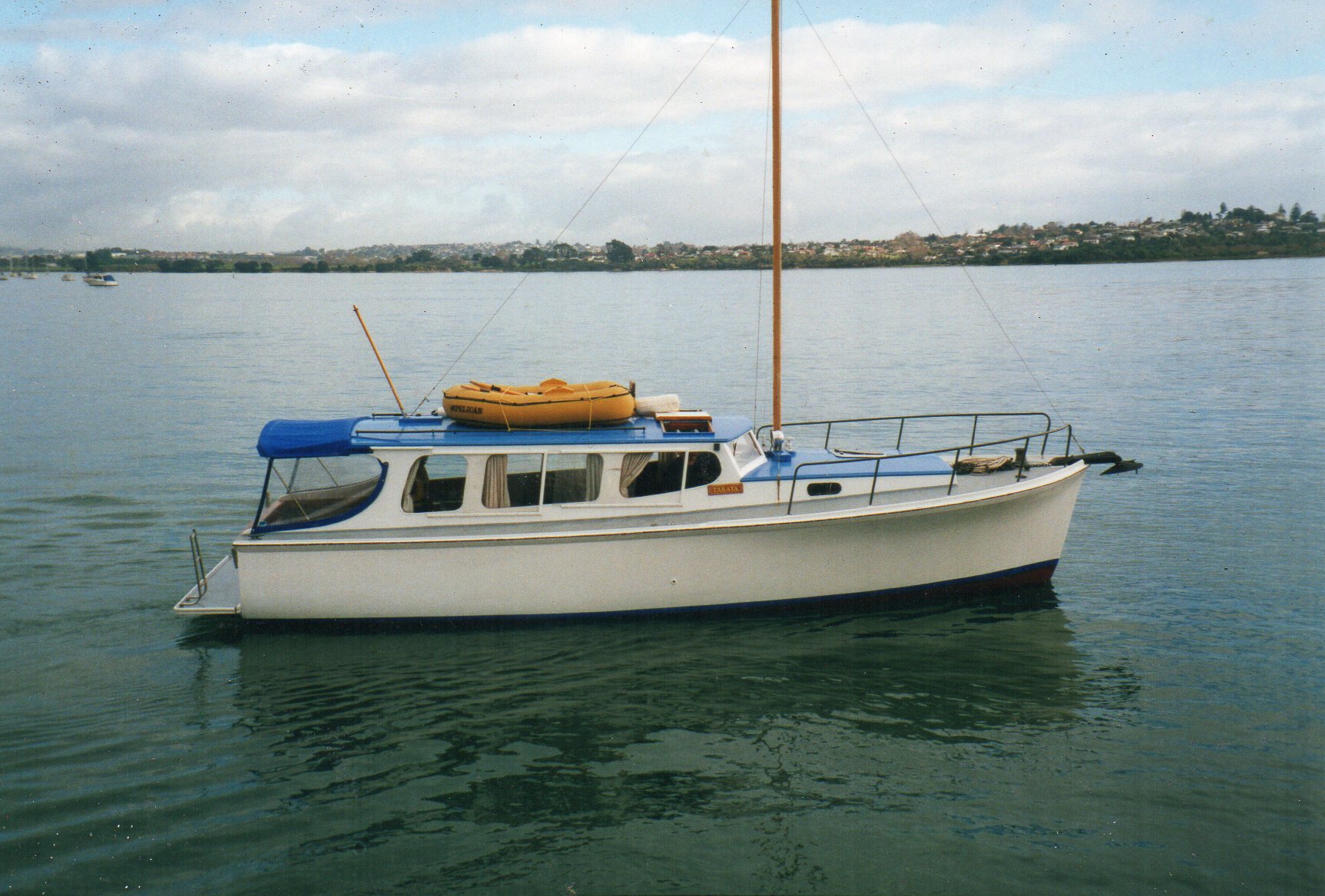

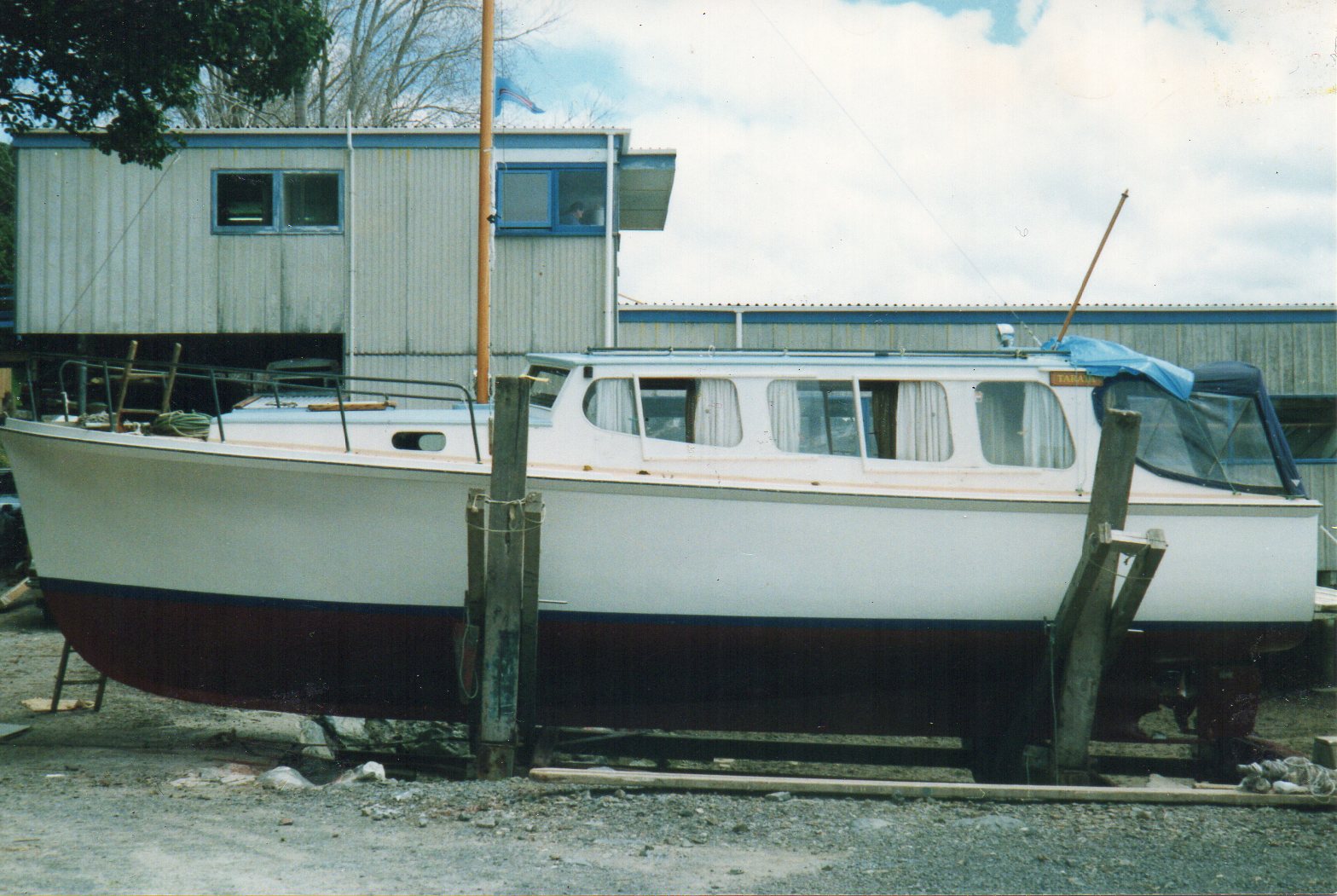

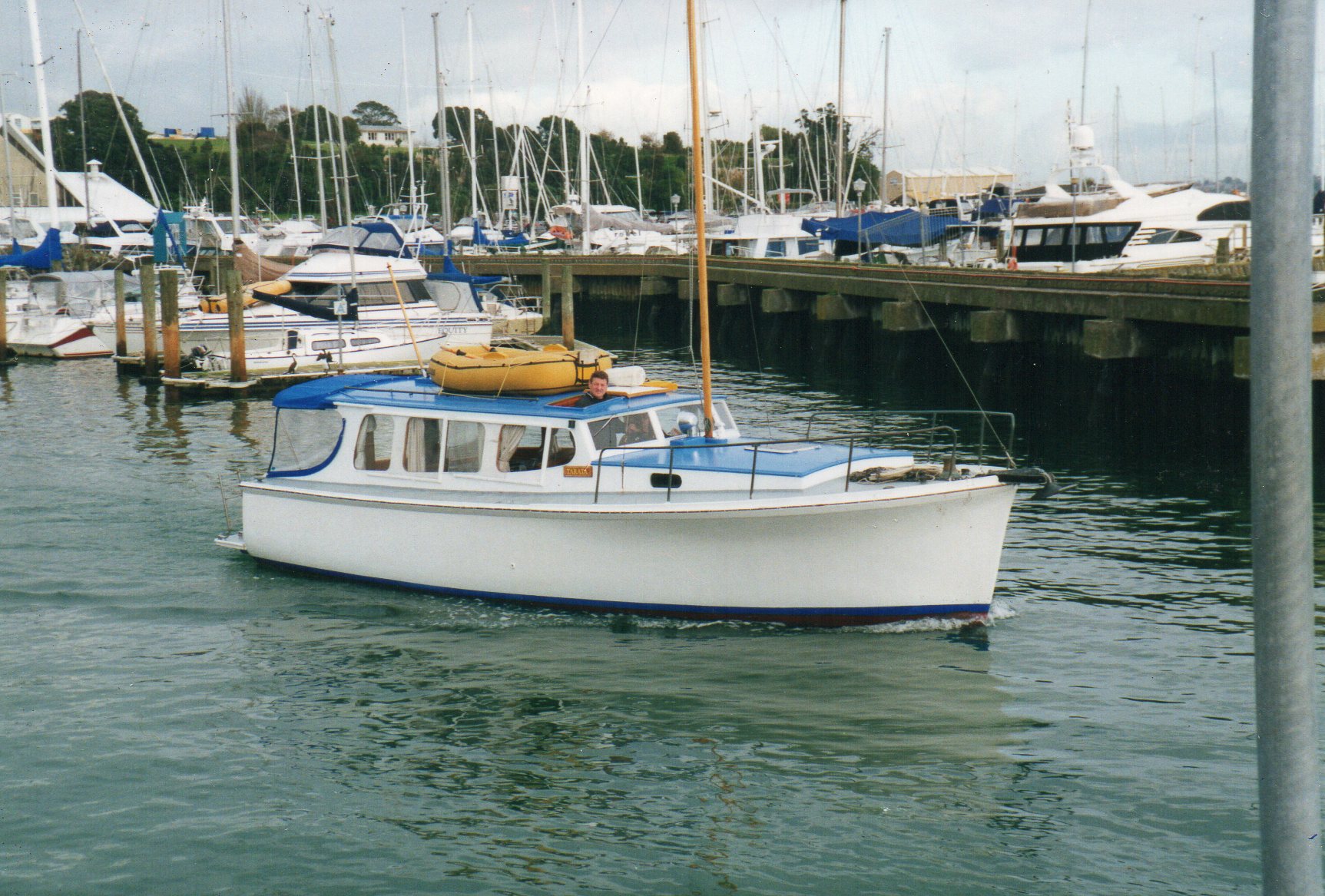

Now Alan works overseas & returned to NZ last week from Chile & was in the Pakuranga area last Thursday and having been advised that Allan Keane at HMB Brokerage had some history on Tarata, Alan took the opportunity to drop into to his office. He kindly searched thru his sales records and found the last transaction he had done in 2003 and gave Alan his display photos (as above). Attached are scans of the photos.
As a result of Alan’s time with Allan Keane & other sniffing around he has been able to assemble the details below on Tarata. Still very keen to learn details on her recent history & current where abouts. ” Tarata was built by Snow Waters and launched in 1962 for Lloyd Kitchen (of the H.C. Kitchen formica family). Designer is believed to be Bill Couldrey but this is not certain. She is 32’ x 10’6” x 3’, hull is 7/8” single skin kauri on steam bent ribs with solid timber floors, decks are one diagonal and one fore and aft tongue and groove sheathed with canvas & fiberglass. Cabin coamings are solid timber and cabin top appeared to be plywood over solid beams with the surface between the beams Formica lined. Original engine was a marinised 60hp Fordson Super Major with a Paragon 2:1 mechanical gearbox. The engine installation was quite cunning, the engine is mounted forward of the main cabin and offset slightly to starboard to allow sufficient width for the passage to port and a narrow bunk. The drive train consisted of truck assembly double universal and sliding spline shaft, with thrust from the propeller taken by a rigidly mounted thrust bearing. All tanks were copper as were the bow rails and cabin top hand rails. She has a mast approx. 6m tall fitted with a jib used as a steadying sail.
The Kitchen’s sold her about 1967 to Arthur Wagner and my father, Howard Sexton bought her in 1971, owning her until 1979. She was then bought by Wayne Kidd and a partner who owned her until approx. 1983. She has had a number of owners since and last record is that she was sold to Barry and Jane Radford from Kerikeri in 2003.
She was re-engined sometime in the 80’s with a slightly larger 85hp 4 cyl Lees Ford and a hydraulic gearbox. Otherwise she appears virtually unchanged, at least in 2003 when the photos were taken. She was a tough little launch and would plug on thru just about any sea. There is at least one sister ship, Yin Yang at Westpark, who has had her cockpit extended. At one time we were told Snow had built up to 6 of this design but this is not certain.”
Input from Robert Brooke – Tarata was built by Snow Waters to a modified ” Mapuna” design of my fathers
